Gigabyte MS03-CE0
P/N: 9MS03CE0MR-00
952€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Gigabyte MS03-CE0 workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 2 kg |
|---|---|
| Dimensions | 38 × 31 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | MS03-CE0 |
| Memory type | DDR5 RDIMM |
| Maximum memory capacity | 2TB |
| Processors on a motherboard | 1 |
| Length (cm) | 38 |
| Width (cm) | 31 |
| Weight (kg) | 2 |
| Socket | LGA 4677 |
| Chipset | Intel C741 |
| Max Supported CPU TDP (W) | 350 |
| Number of DIMM Slots | 8 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 1Gb/s (Intel I210-AT) |
| Form Factor | ATX |
| Integrated RAID Controller | ASPEED AST2600 |
Product description

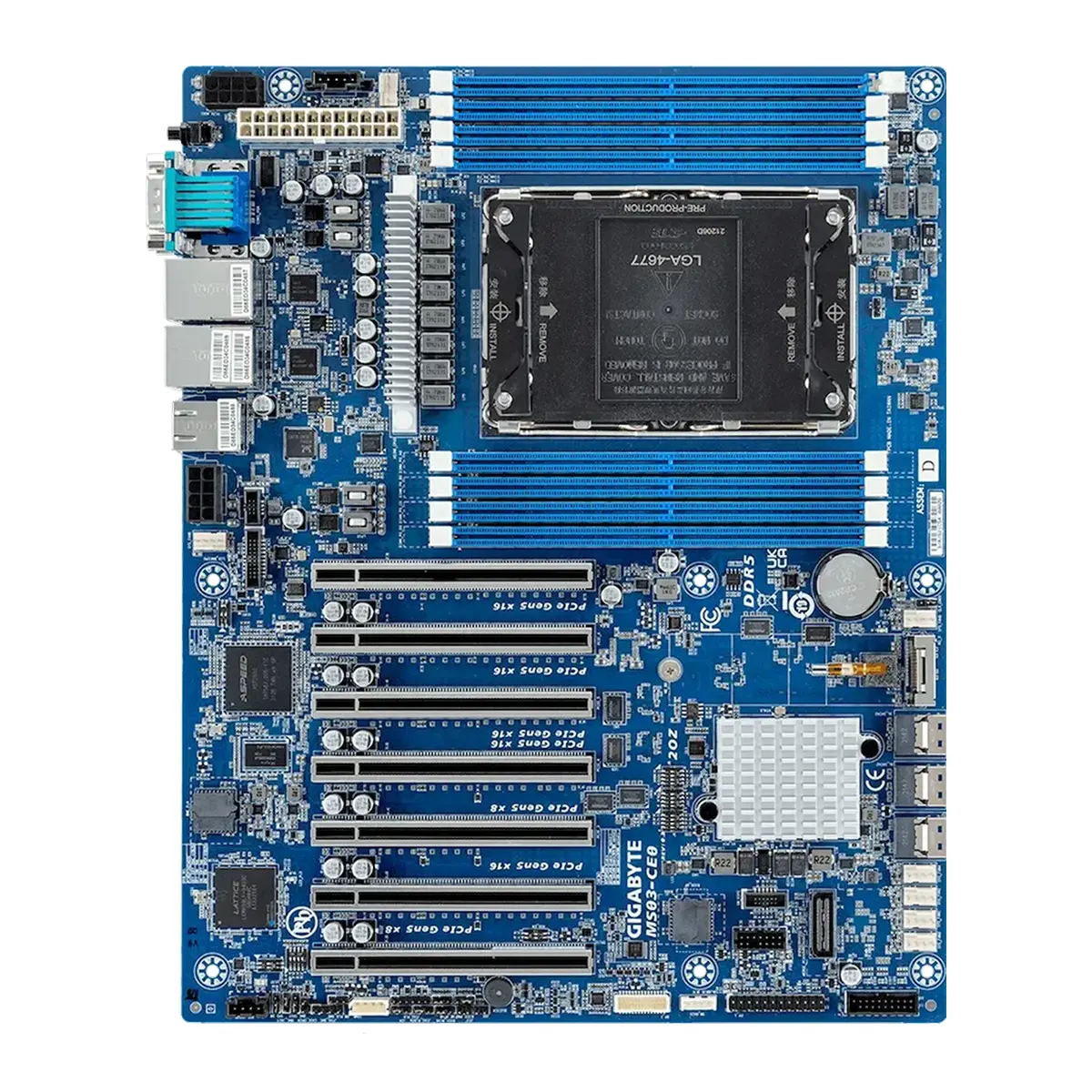

Gigabyte MS03-CE0 (Rev. 1.x/3.x) – Enterprise server motherboard for 4th/5th Gen Intel Xeon Scalable with dual 1GbE and PCIe 5.0
The Gigabyte MS03-CE0 is a robust single-socket server motherboard designed to maximize the potential of the 4th and 5th Generation Intel Xeon Scalable Processors and Intel Xeon CPU Max Series. Engineered for data centers, cloud infrastructure, and heavy virtualization, this board supports high-performance processors up to 350W TDP and features a cutting-edge architecture with PCIe 5.0 expansion, versatile storage options, and essential networking. Its enterprise-grade reliability and comprehensive remote management capabilities make it a cornerstone for building scalable and stable server systems.
Processor and memory performance
- Socket: 1 x LGA 4677
- Supports 4th and 5th Gen Intel Xeon Scalable Processors and Xeon Max Series
- Single processor support (up to 350W TDP)
- 8 DDR5 DIMM slots with 8-channel memory architecture
- Supports DDR5 RDIMM memory up to 5600 MT/s
By leveraging the latest Intel architecture and the Intel C741 chipset, the board delivers exceptional compute density. The 8-channel DDR5 memory design ensures massive bandwidth for memory-intensive applications such as database management and virtual machine hosting, guaranteeing high data throughput during 24/7 operation.
PCIe 5.0 expansion
- Seven PCIe Gen5 slots direct from the CPU
- Up to four PCIe Gen5 x16 slots or a flexible mix of x16 and x8 configurations
- Massive bandwidth for high-performance accelerators or NVMe adapters
- Support for multi-card configurations
The transition to PCIe Gen5 doubles the bandwidth compared to the previous generation, completely removing bottlenecks for modern high-speed storage, network interface cards, and compute accelerators. The flexible slot configuration allows for versatile enterprise deployments.
Storage flexibility
- One M.2 slot (2280, PCIe Gen3 x4) for OS boot or caching
- Three SlimSAS 4i connectors supporting up to 12 SATA drives
- Data protection via Intel SATA RAID 0, 1, 10, 5
- Onboard VROC key header for advanced NVMe capabilities
The MS03-CE0 provides a solid storage foundation, combining an M.2 slot for the operating system with extensive SATA connectivity via SlimSAS interfaces for bulk storage. The inclusion of Intel VROC support ensures enterprise-class data protection and NVMe RAID management.
Connectivity and remote management
- Dual 1GbE LAN ports via Intel I210-AT controller (NCSI supported)
- Dedicated 10/100/1000 Mbps management LAN port
- Integrated ASPEED AST2600 Baseboard Management Controller
- Four USB 3.2 Gen1 ports, Serial port, and VGA output
Networking is handled by reliable Intel I210-AT controllers, while the board features a full suite of remote management tools via the upgraded ASPEED AST2600 BMC. Administrators can leverage HTML5 KVM, hardware inventory tracking, and remote BIOS updates through the GIGABYTE Management Console to monitor health and manage the server remotely.
Recommended use cases
Enterprise Workloads and Virtualization
- 5th Gen Intel Xeon Scalable processor
- High-speed DDR5 RDIMM memory
- Enterprise-grade NVMe or SATA storage arrays
- Add-on PCIe Gen5 network adapters for enhanced throughput
Data Analytics and Database Servers
- Intel Xeon CPU Max Series for memory-bandwidth bound tasks
- Maximum DDR5 memory population
- High-capacity storage connected via SlimSAS
- Hardware accelerators installed in PCIe Gen5 x16 slots
Conclusion
The Gigabyte MS03-CE0 strikes an excellent balance between cutting-edge performance and robust expandability. With native support for the latest Intel Xeon Scalable processors, blazing-fast DDR5 memory, and extensive PCIe 5.0 connectivity, it serves as a highly capable platform for businesses looking to deploy powerful enterprise applications, data processing nodes, or reliable virtualization infrastructure.
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Gigabyte MS03-CE0 Motherboard
The Gigabyte MS03-CE0 is a high-performance single-socket ATX server motherboard designed to unlock the potential of 4th and 5th Generation Intel Xeon Scalable processors based on the LGA 4677 socket. The platform is built on the specialized Intel C741 server chipset, offering enterprise-grade compute density in a compact form factor for uninterrupted 24/7 operation.
The motherboard is designed and hardware-optimized for the following tasks:
- Edge Computing: Thanks to its compact ATX format, the board easily integrates into small server nodes for processing data at the edge, saving physical space.
- Enterprise Virtualization: Support for up to 2 TB of DDR5 RAM and flagship multi-core processors allows for deploying multiple isolated virtual machines on a single physical server.
- Web Servers and Cloud Computing: An excellent balance between the performance of a single powerful processor, energy efficiency, and dimensions makes it ideal for dense server placement in data centers.
- Analytics and In-Memory Databases: The integration of advanced DDR5 RDIMM memory ensures the highest bandwidth and minimal latency during constant access to datasets.
Comparative Table of Technical Specifications
Below is a comparison of the Gigabyte MS03-CE0 with its closest competitors on the LGA 4677 platform.
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Gigabyte MS03-CE0 | ATX | 1 | Intel C741 | 8x DDR5 RDIMM | 2TB | 2x 1Gb/s | 350 |
| Supermicro X13SEI-F | E-ATX | 1 | Intel C741 | 8x DDR5 RDIMM | 2TB | 2x 1Gb/s | 350 |
| Supermicro X13DEI-T | E-ATX | 2 | Intel C741 | 16x DDR5 RDIMM | 4TB | 2x 10Gb/s | 350 |
| Gigabyte MS73-HB1 | E-ATX | 2 | Intel C741 | 16x DDR5 RDIMM | 4TB | 2x 1Gb/s | 350 |
*RAM — Random Access Memory.
Analysis of Gigabyte MS03-CE0 Strengths
Based on the dry technical specifications, we can highlight the key advantages of the Gigabyte MS03-CE0 compared to the presented competing solutions on the LGA 4677 socket:
- Ideal balance of performance and compactness (ATX): The main advantage of the model over its direct single-socket competitor, the Supermicro X13SEI-F, is the use of the ATX standard instead of the larger E-ATX. This allows the motherboard to be installed in a very wide range of compact server chassis, saving physical rack space without sacrificing server functionality.
- Uncompromising processor power: Despite its compact ATX size, the motherboard features a powerful power delivery subsystem, guaranteeing the stable operation of top-tier Intel Xeon processor models with a TDP of up to 350W. This allows it to deliver flagship computing power comparable to large E-ATX platforms.
- True server chipset: The use of the Intel C741 logic set guarantees maximum hardware compatibility with enterprise server operating systems, support for management instructions, and supreme fault tolerance for continuous workloads.
- Outstanding supported memory capacity: Support for up to 2 TB of high-speed DDR5 RDIMM memory fully meets the needs of heavy enterprise applications and databases, yielding nothing in this metric to larger single-processor counterparts.
- Pragmatic network configuration: The presence of standardized 2x 1Gb/s ports makes the board versatile for basic administration tasks. This leaves PCIe lanes free for installing exactly the specialized network adapters (10/25/100 Gbps) required for a specific infrastructure, without overloading the board with redundant controllers.
Conclusion
The Gigabyte MS03-CE0 is a reference compact server platform that provides exceptional single-socket architecture capabilities based on the LGA 4677 socket. It flawlessly combines support for the highest-performing Intel Xeon processors with a 350W TDP, the pure enterprise C741 chipset, a gigantic amount of supported DDR5 memory, and the stunning versatility of the ATX form factor. This motherboard is the perfect foundation for creating powerful, scalable, and compact infrastructure nodes in the modern enterprise segment, where supreme compute density is required within limited physical space.
Product FAQ
The board is equipped with an LGA 4677 socket and is designed for powerful 4th and 5th Generation Intel Xeon Scalable server processors. The reinforced power delivery subsystem allows the use of flagship processors with a Thermal Design Power (TDP) of up to 350W.
No, this model is a single-socket (1S) motherboard. It is specifically designed for tasks that require the high computing power of a single modern multi-core Intel Xeon processor combined with the compact dimensions of the system itself.
The board supports the installation of up to 2 TB of high-speed server memory. It uses the advanced DDR5 RDIMM standard, which provides the colossal bandwidth required for demanding databases and virtualization systems.
One of the main advantages of the Gigabyte MS03-CE0 is its use of the standard, compact ATX form factor (305 x 244 mm). Thanks to this, the board easily fits into most universal server chassis (both Rackmount and Tower), saving physical space.
The rear panel of the motherboard features two standard Gigabit network ports (1GbE RJ45). This is a basic, versatile solution that is perfect for management traffic and basic administration tasks.
Since the board offers basic 1GbE ports, connecting to faster data center backbones will require installing an additional network adapter of the required standard (10, 25, or 100 Gbps) into an available PCIe expansion slot.
Yes, the LGA 4677 platform provides full support for the advanced PCI Express 5.0 high-speed bus standard. This guarantees the absence of bottlenecks when connecting high-performance RAID controllers and ultra-fast NVMe drives.
The board is designed for the enterprise segment, so it is equipped with an integrated Baseboard Management Controller (BMC ASPEED) and a dedicated Management LAN network port. This allows administrators to remotely control power, update the BIOS, monitor temperature readings, and manage the server via a virtual KVM console.
The Gigabyte MS03-CE0 is an ideal choice for Edge Computing, hosting resource-intensive web services, small to medium-scale enterprise virtualization, and creating compact yet highly powerful data processing nodes in space-constrained rack environments.
