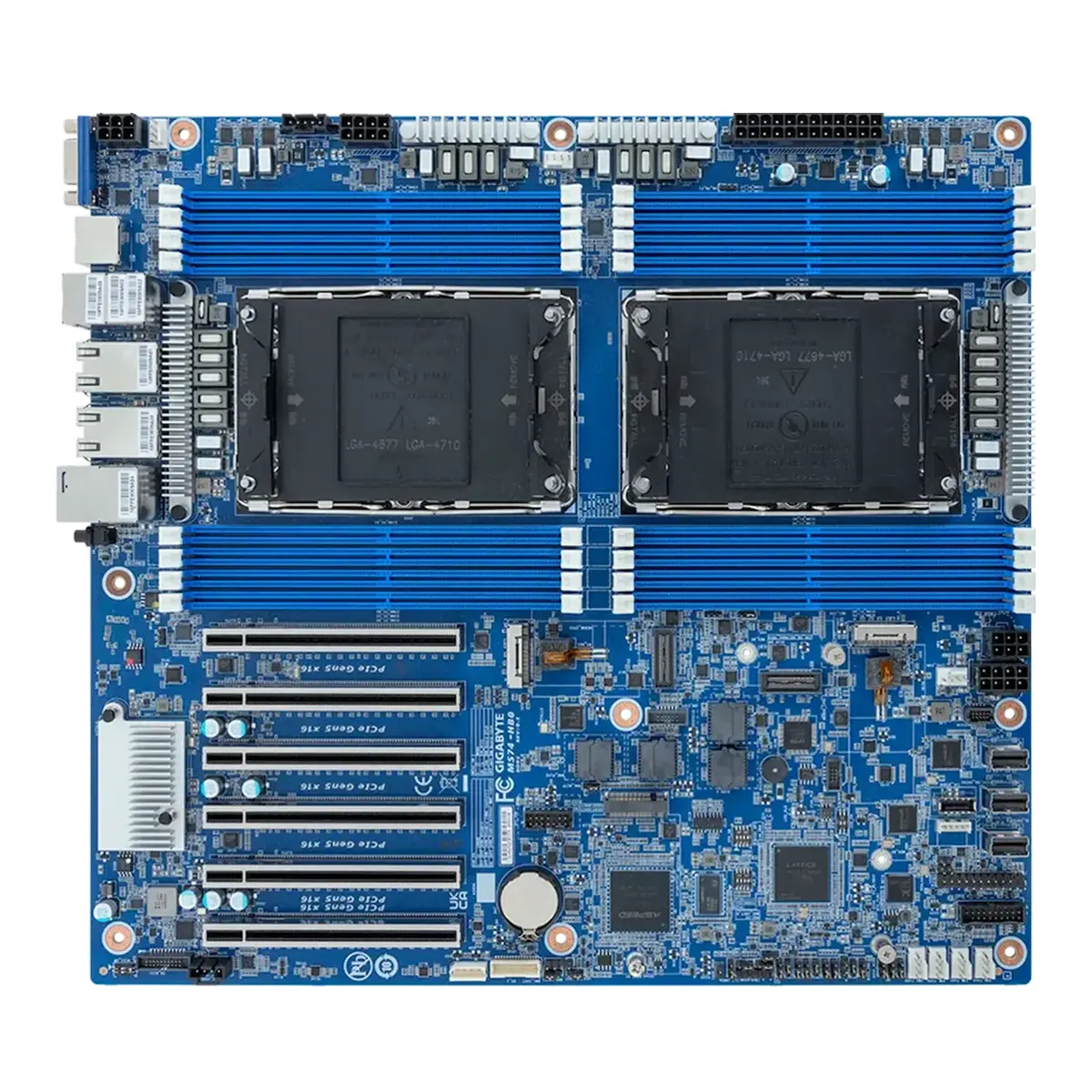

Gigabyte MS74-HB0
P/N: 9MS74HB0MR-00
1 782€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Gigabyte MS74-HB0 workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 2 kg |
|---|---|
| Dimensions | 38 × 31 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | MS74-HB0 |
| Memory type | DDR5 RDIMM, DDR5/MRDIMM |
| Maximum memory capacity | 4TB |
| Processors on a motherboard | 2 |
| Length (cm) | 38 |
| Width (cm) | 31 |
| Weight (kg) | 2 |
| Socket | LGA 4710 |
| Chipset | System on Chip |
| Max Supported CPU TDP (W) | 350 |
| Number of DIMM Slots | 16 |
| Number of LAN Ports | 4 |
| Integrated LAN Controller | 2x 1Gb/s (Intel I210-AT), 2x 10Gb/s (Intel X710-AT2) |
| Form Factor | E-ATX |
| Integrated RAID Controller | ASPEED AST2600 |
Product description
GIGABYTE MS74-HB0 – Dual-Socket E-ATX Infrastructure for Intel Xeon 6 Clusters featuring 16-DIMM DDR5 and Hexa-PCIe Gen5
The GIGABYTE MS74-HB0 (Rev. 1.x) serves as a robust backbone for modern enterprise data centers, engineered to harness the immense parallel processing capabilities of the Intel Xeon 6 platform. Architected around the LGA4710 (Socket E2) interface, this E-ATX mainboard is designed to drive high-density workloads, ranging from hyper-converged infrastructure (HCI) to AI-assisted data analytics. By combining the throughput of PCIe 5.0 with the low-latency performance of next-generation memory, it provides a scalable foundation that remains relevant through future upgrade cycles.
Uncompromised Compute and Thermal Stability
At the core of the system lies a dual-socket configuration capable of hosting both “Sierra Forest” (E-core) and “Granite Rapids” (P-core) processor variants. The power delivery subsystem is built to sustain Thermal Design Power (TDP) envelopes of up to 350W per socket. This thermal headroom allows system architects to deploy high-frequency, high-core-count silicon without fear of throttling, ensuring consistent performance for mission-critical virtualization and cloud services.
Memory Bandwidth: The 1DPC Advantage
To feed data to dual processors effectively, the board employs a 16-slot memory topology. It utilizes a 1DPC (One DIMM Per Channel) design strategy, which is critical for signal integrity at high speeds. This configuration enables the usage of standard ECC RDIMMs at 6400 MT/s, while also unlocking the potential of MRDIMM technology to reach blistering speeds of 8000 MT/s on supported CPUs. This massive bandwidth is essential for preventing bottlenecks in memory-bound applications like real-time transaction processing.
Symmetrical Expansion Architecture
The I/O landscape is designed for balance and speed. The MS74-HB0 features six physical PCIe Gen5 x16 slots, offering double the data transfer rate of the previous generation. Crucially, these slots are evenly distributed between the two CPUs (three per socket). This balanced NUMA (Non-Uniform Memory Access) layout ensures that installed accelerators—such as GPUs, DPUs, or FPGA units—communicate directly with their local processor, minimizing latency and maximizing efficiency in multi-card setups.
Enterprise-Grade Connectivity and Oversight
Networking capabilities are embedded directly into the PCB, reducing the need for add-on cards. An Intel X710-AT2 controller drives two 10GbE ports for heavy production traffic, complemented by two Gigabit Ethernet ports (Intel I210) for utility management. System administration is centralized via the ASPEED AST2600 BMC. This chip facilitates secure, out-of-band management via IPMI 2.0 and HTML5 KVM, allowing IT teams to perform BIOS updates and monitor hardware health remotely, independent of the operating system state.
Storage Versatility
The platform offers a tiered approach to data management:
- Rapid Boot & Cache: Two M.2 Gen5 x4 interfaces allow for the installation of high-speed NVMe drives, perfect for OS hosting or write-intensive logging.
- Bulk Data: Three onboard SlimSAS connectors provide breakout connectivity for up to 12 SATA 6Gb/s drives, enabling cost-effective, high-capacity local storage arrays.
Recommended Deployment Use Cases
- Private Cloud Hosting: Maximizing VM density per rack unit via dual sockets and 16 DIMMs.
- Big Data Analytics: Leveraging the balanced PCIe lanes for high-speed network interconnects and storage controllers.
- GPU Compute Nodes: Utilizing the six x16 slots for multi-accelerator inference workloads.
Technical Specifications Overview
- Processor Ecosystem: Dual Intel Xeon 6 (Series 6700/6500) / LGA4710 / 350W TDP Support
- Memory Architecture: 16 DIMMs, Supports DDR5 MRDIMM (8000 MT/s) & RDIMM
- Expansion Capabilities: 6x PCIe 5.0 x16 slots (Balanced 3+3 Layout)
- Network Interface: 2x 10GbE (X710) + 2x 1GbE (I210) + Mgmt LAN
- Storage I/O: 2x M.2 NVMe Gen5, 3x SlimSAS (SATA mode)
- Management: ASPEED AST2600 (IPMI / KVM-over-IP)
- Form Factor: E-ATX (12″ x 13″)
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Gigabyte MS74-HB0 Motherboard
The Gigabyte MS74-HB0 is a flagship dual-socket E-ATX server motherboard designed to maximize the performance of the latest 6th Generation Intel Xeon processors based on the LGA 4710 socket. This model represents an uncompromising platform for building enterprise-class compute nodes, offering ultimate core density, colossal memory bandwidth, and integrated high-speed network interfaces.
The board is designed and optimized for the following resource-intensive tasks:
- Large-scale virtualization (VDI): Doubled core count (thanks to two CPUs) and support for a massive amount of RAM allow it to serve hundreds of resource-heavy virtual machines on a single physical server.
- High-Performance Computing (HPC) and AI: Dual processors provide extreme performance in parallel computing, and available PCIe lanes allow for the direct connection of multiple graphics accelerators.
- In-Memory Databases: 16 slots for cutting-edge DDR5 MRDIMM memory guarantee minimal latency when processing massive datasets directly in RAM.
- Hyper-Converged Infrastructure (HCI): Built-in 10GbE ports are ideal for synchronizing distributed storage and moving data quickly across a cluster.
Comparative Table of Technical Specifications
Below is a comparison of the Gigabyte MS74-HB0 with key competitors on the LGA 4710 platform.
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Gigabyte MS74-HB0 | E-ATX | 2 | System on Chip | 16x DDR5 MRDIMM/RDIMM | 4TB | 2x 1Gb/s/ 2x 10Gb/s |
350 |
| Supermicro X14DBI-T | E-ATX | 2 | System on Chip | 16x DDR5 MRDIMM/RDIMM | 1TB/4TB | 2x 10Gb/s | 350 |
| Gigabyte MS04-CE0 | ATX | 1 | System on Chip | 8x DDR5 MRDIMM/RDIMM | 2TB | 2x 1Gb/s | 350 |
| Supermicro X14SBI-F | ATX | 1 | System on Chip | 8x DDR5 MRDIMM/RDIMM | 512GB/2TB | 2x 1Gb/s | 350 |
*RAM — Random Access Memory.
Analysis of Gigabyte MS74-HB0 Strengths
Based on the technical analysis, we can highlight the undeniable advantages of the Gigabyte MS74-HB0 compared to competitors in its segment:
- Ultimate compute density: Unlike single-socket models (Gigabyte MS04-CE0, Supermicro X14SBI-F), the board supports the installation of two highly powerful processors with a TDP of up to 350W. This doubles computing power and significantly increases the number of available PCIe lanes, which is critical for high-performance computing clusters.
- Highly flexible network subsystem: The main advantage over its direct dual-socket competitor (Supermicro X14DBI-T) lies in the hybrid configuration of its network interfaces. The Gigabyte MS74-HB0 features both 2x 10Gb/s ports for high-speed data traffic and 2x 1Gb/s ports onboard, which can be used for management traffic or integration into existing gigabit infrastructures right out of the box, without the need for additional expansion cards.
- Maximum memory scalability: The use of 16 slots ensures support for up to 4 TB of advanced DDR5 MRDIMM memory. This architecture guarantees the unprecedented bandwidth required to smoothly supply data to the hundreds of compute threads of modern 6th Gen Xeon processors.
- Robust power delivery subsystem: The reliable VRM architecture, designed to simultaneously run two 350W chips, demonstrates the motherboard’s highest level of reliability under peak and sustained loads during 24/7 server operation.
Conclusion
The Gigabyte MS74-HB0 is an uncompromising dual-socket solution on the LGA 4710 platform, built for the heaviest enterprise workloads. Combining support for flagship processors up to 350W, a colossal 4 TB RAM capacity, and the most versatile built-in network configuration in its class (a combination of 1GbE and 10GbE), this motherboard is the perfect foundation for building the most powerful virtualization nodes and ultra-fast databases for advanced data centers.
Product FAQ
This model is a dual-socket (2S) board equipped with two LGA 4710 sockets. It is designed for the latest 6th Generation Intel Xeon server processors with a Thermal Design Power (TDP) of up to 350W per processor, ensuring extreme computing power.
The board features 16 DIMM slots (8 per processor). You can install a total of up to 4 TB of high-speed DDR5 server memory. It supports both classic RDIMM modules and the latest MRDIMMs, which provide maximum bandwidth for databases.
The Gigabyte MS74-HB0 features a highly flexible out-of-the-box network subsystem. The board includes two 10 Gigabit Ethernet (10GbE) ports for high-speed data transfer and two Gigabit ports (1GbE) for standard networking tasks. This allows for easy integration of the server into your infrastructure without the need to purchase additional network adapters.
Yes, the board can operate with only a single processor installed. However, keep in mind that in this mode, only the RAM slots and PCIe expansion lanes hardware-linked to the occupied socket will be active. To utilize the board’s full potential, two processors must be installed.
No, the motherboard is designed in the larger E-ATX server form factor. For proper installation and optimal airflow distribution, a specialized server chassis (Rackmount or Tower) that is officially compatible with the E-ATX format is required.
Yes, thanks to the LGA 4710 platform, this board fully supports the high-speed PCIe 5.0 bus. This guarantees no bottlenecks when connecting advanced NVMe drives, ultrafast network controllers, and compute graphics accelerators (GPUs).
The board integrates a modern BMC controller and features a dedicated network port (Management LAN). This provides fully-featured remote management (including IPMI 2.0, Redfish, and KVM-over-IP), allowing administrators to configure the system, update the BIOS, and monitor hardware remotely.
Given its support for two flagship processors with a TDP of up to 350W each, the system requires robust server-grade cooling. Specialized heatsinks for the LGA 4710 socket must be used, and the server chassis must be equipped with powerful, high-RPM fans to create direct-through airflow.
The Gigabyte MS74-HB0 is an uncompromising solution for the most resource-intensive enterprise tasks. It is ideal for large-scale virtualization, high-performance computing (HPC) clusters, working with large in-memory databases, and building high-performance nodes for hyper-converged infrastructure.
