New
Gigabyte MW53-HP0
P/N: 9MW53HP0MR-00
958€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Gigabyte MW53-HP0 workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 2,2 kg |
|---|---|
| Dimensions | 38 × 31 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | MW53-HP0 |
| Memory type | DDR5 RDIMM |
| Maximum memory capacity | 512GB, 2TB |
| Processors on a motherboard | 1 |
| Length (cm) | 38 |
| Width (cm) | 31 |
| Weight (kg) | 2.2 |
| Socket | LGA 4677 |
| Chipset | Intel W790 |
| Max Supported CPU TDP (W) | 385 |
| Number of DIMM Slots | 8 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 2.5Gb/s (Intel I226-LM) |
| Form Factor | ATX |
| Integrated RAID Controller | ASPEED AST2600 |
Product description

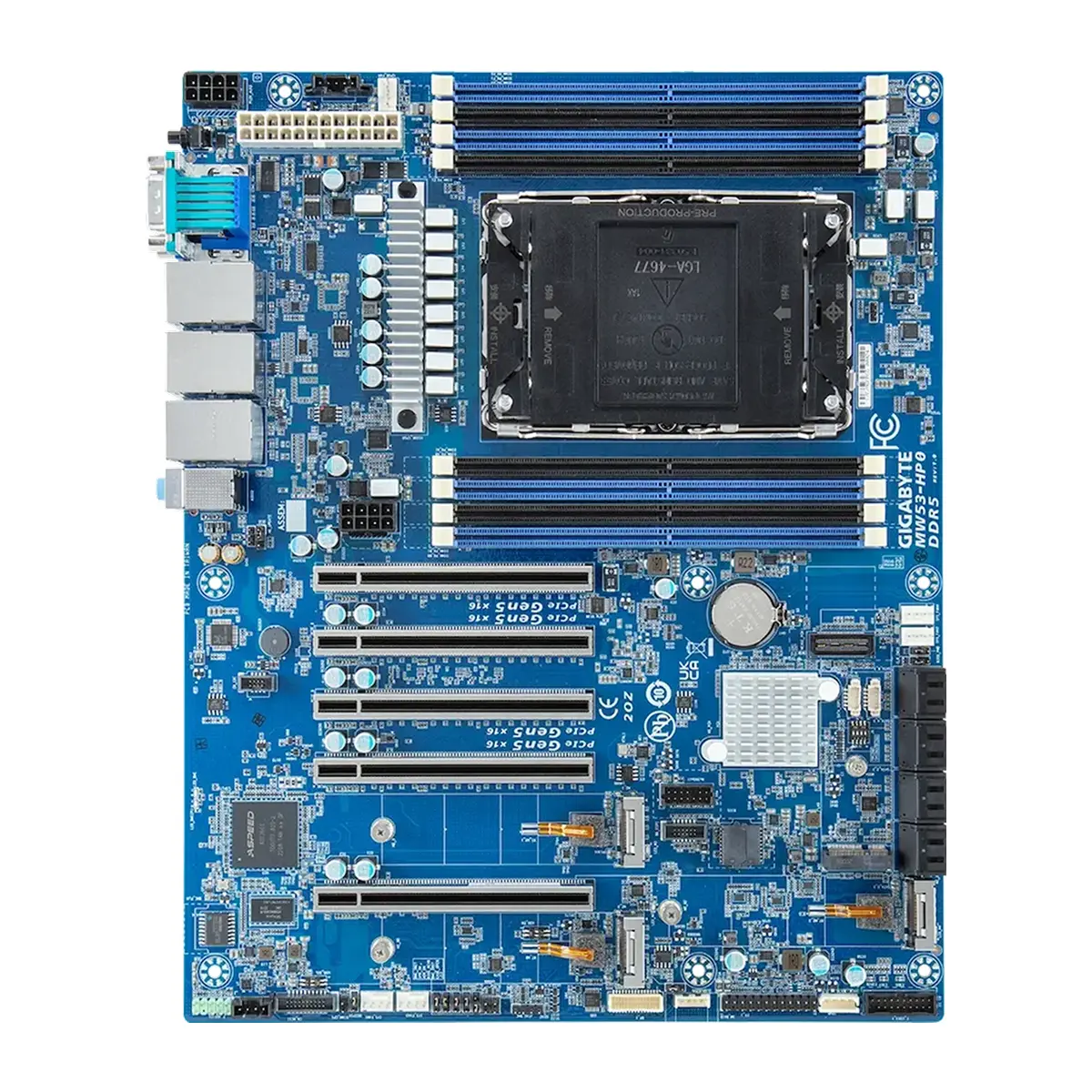

GIGABYTE MW53-HP0 – Compact ATX Platform for Intel Xeon W-3400/2400 Workstations featuring PCIe 5.0 and IPMI
The GIGABYTE MW53-HP0 redefines what is possible in a standard desktop footprint. Built on the Intel W790 chipset, this motherboard packs the immense computational capability of Intel Xeon W-3400 and W-2400 (LGA4677) processors into a versatile ATX form factor. It is engineered for professionals who require the reliability of a server and the power of a cluster, but need it housed in a workstation chassis. With support for ECC memory, next-generation PCIe 5.0 throughput, and comprehensive remote administration, it serves as a robust foundation for VFX rendering, machine learning, and complex simulation tasks.
Unleashing Sapphire Rapids Architecture
Despite its compact size, the MW53-HP0 makes no compromises on power. It is designed to drive high-performance Xeon W-Series CPUs with up to 60 cores, accommodating thermal design power (TDP) loads of up to 385W. This makes it an exceptional choice for multi-threaded applications such as 3D rendering, video post-production, and scientific analysis, ensuring sustained performance stability under heavy load.
Memory and Data Integrity
The board features an 8-slot memory subsystem optimized for DDR5 ECC RDIMM and 3DS RDIMM modules. Utilizing a Quad-Channel architecture, it supports a maximum capacity of 2TB. The system is tuned for speeds of 4800 MT/s (1DPC) and 4400 MT/s (2DPC), providing the high-bandwidth, low-latency environment necessary for data-intensive workloads while Error Correction Code (ECC) protects against data corruption during critical operations.
Advanced Expansion and Connectivity
To support the latest generation of professional GPUs and accelerators, the motherboard is equipped with full-speed PCIe 5.0 x16 slots. This Gen5 interface doubles the available bandwidth compared to PCIe 4.0, removing bottlenecks for hardware-accelerated tasks in AI training and CAD/CAE environments.
Hybrid Storage Configuration
- High-Speed NVMe: Three M.2 slots (PCIe 4.0 x4) provide ultra-fast storage for operating systems, scratch disks, and active project files.
- Mass Storage: Eight SATA 6Gb/s ports allow for the creation of large RAID arrays (0/1/5/10) to store archives and assets.
Enterprise-Grade Networking and Management
The MW53-HP0 bridges the gap between workstation and server with its connectivity suite. It features dual Intel I226-LM 2.5GbE LAN ports for accelerated local network transfer. Furthermore, the inclusion of an ASPEED AST2600 BMC chip adds a dedicated Gigabit management port. This enables true IPMI 2.0 remote management, allowing IT administrators to access the BIOS, monitor hardware health, and control power states remotely via a web console or KVM-over-LAN.
Target Applications
- Compact Engineer Workstations: Running CAD software and simulations in a standard ATX tower.
- Edge Server Deployments: Virtualization and data processing in space-constrained environments.
- Content Creation Nodes: 4K/8K video editing and rendering with enterprise reliability.
Technical Summary
- Platform: Intel W790 Chipset / LGA4677 Socket
- Processor Compatibility: Xeon W-3400 & W-2400 Series (up to 385W)
- Memory Standard: 8 DIMMs, DDR5 ECC RDIMM/3DS, Quad-Channel
- Expansion Slots: PCIe Gen5 x16 support
- Storage Interfaces: 3x M.2 Gen4 NVMe, 8x SATA III
- Network & Control: 2x 2.5GbE, 1x IPMI Dedicated LAN (AST2600)
- Dimensions: Standard ATX (305mm x 244mm)
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Gigabyte MW53-HP0 Motherboard
The Gigabyte MW53-HP0 is a high-performance, premium-class motherboard created for building ultra-powerful workstations based on the LGA 4677 socket. The platform is built on the advanced Intel W790 chipset and designed to unlock the full potential of the latest Intel Xeon W-3400 and W-2400 series processors. The uniqueness of this model lies in the fact that it offers colossal computing capabilities and support for the most powerful processors within a versatile and compact ATX form factor.
This motherboard is hardware-optimized and intended for the following resource-intensive tasks:
- Professional 3D Modeling and CAD/CAM: The powerful architecture allows for comfortable work with heavy engineering assemblies and complex geometry, ensuring smooth viewport performance.
- Digital Content Creation and Video Editing: High-speed I/O interfaces and support for massive amounts of RAM make the board ideal for processing ultra-high-definition (4K/8K) video and rendering.
- Compact Compute Nodes: Thanks to the ATX form factor, the board is perfectly suited for deploying local computing power where space is strictly limited.
- Data Analytics and Local AI Computing: Support for processors with a huge core count and a TDP of up to 385W provides the necessary power to process datasets directly at the specialist’s workstation.
Comparative Table of Technical Specifications
Below is a comparison of the Gigabyte MW53-HP0 with its closest direct competitors on the Intel W790 chipset (LGA 4677 platform).
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Gigabyte MW53-HP0 | ATX | 1 | Intel W790 | 8x DDR5 RDIMM | 512GB/2TB | 2x 2.5Gb/s | 385 |
| Supermicro X13SWA-TF | E-ATX | 1 | Intel W790 | 16x DDR5 LRDIMM/RDIMM | 2TB/4TB | 1x 1Gb/s 1x 10Gb/s |
385 |
| Gigabyte MW83-RP0 | CEB | 1 | Intel W790 | 8x DDR5 RDIMM | 512GB/2TB | 2x 10Gb/s | 385 |
*RAM — Random Access Memory.
Analysis of Gigabyte MW53-HP0 Strengths
Based on the technical specifications, we can highlight the absolute advantages of the Gigabyte MW53-HP0 compared to competitors on the LGA 4677 platform:
- Maximum performance in a universal format (ATX): This is the most important and undeniable advantage of this board. Unlike bulky E-ATX solutions (Supermicro X13SWA-TF) and specialized server CEB formats (Gigabyte MW83-RP0), the MW53-HP0 board is built in the standard ATX form factor. It easily installs into the vast majority of computer cases available on the market, providing incredible freedom when designing a compact and silent workstation.
- Uncompromising processor power: Despite its ultra-compact dimensions for this class, the motherboard features a phenomenally reliable power delivery subsystem. It guarantees absolutely stable operation of top-tier processors with a heat dissipation of up to 385W. It extracts 100% of the computing power from flagship chips without the risk of “throttling”.
- Balanced and pragmatic networking: The presence of two 2.5Gb/s ports provides the ideal balance for modern local area networks. This is 2.5 times faster than a standard Gigabit port (which serves as the baseline on the Supermicro), allowing for comfortable work with heavy files over the network without requiring the installation of specialized fiber optics or the purchase of expensive 10GbE switches.
- Optimal memory subsystem: The presence of 8 slots supporting up to 2 TB of DDR5 RDIMM memory covers the requirements of the absolute majority of professionals in graphics, engineering, and programming with a massive margin. This allows the board to remain compact while providing a colossal RAM resource.
Conclusion
The Gigabyte MW53-HP0 is a unique product offering the uncompromising power of the LGA 4677 platform in a classic and compact ATX form factor. This motherboard is the absolute leader for those who want to build an extremely high-performance workstation based on the most powerful Intel Xeon processors with a 385W TDP and a gigantic amount of RAM (up to 2 TB), without resorting to buying massive server cases. It is the perfect combination of incredible compute density, excellent networking capabilities (2x 2.5Gb/s), and maximum versatility.
Product FAQ
The board features a massive LGA 4677 socket and is built on the specialized Intel W790 chipset. It is designed for powerful Intel Xeon W-3400 and W-2400 series workstation processors, supporting top-tier models with a Thermal Design Power (TDP) of up to 385W.
The main and unique advantage of this model is its standard ATX form factor (305 x 244 mm). Unlike giant server boards, it easily installs into the vast majority of standard computer cases (Mid-Tower and Full-Tower). This provides tremendous freedom when designing a powerful yet compact workstation.
The board provides 8 RAM slots. You can install up to 2 TB of high-speed DDR5 memory. This capacity provides a large margin for the most complex architectural projects, simulations, and heavy rendering.
No, the Intel W790 platform requires the use of specialized registered memory (DDR5 RDIMM). Standard unbuffered memory modules (UDIMM) used in the mainstream consumer segment are physically not supported by this architecture.
The motherboard offers a balanced network configuration: it is equipped with two high-speed 2.5 Gigabit Ethernet (2.5GbE) ports. They provide data transfer speeds 2.5 times faster than a standard Gigabit network, which is ideal for comfortable work with heavy files and Network Attached Storage (NAS) without the need to purchase expensive 10-Gigabit equipment.
Yes, thanks to the LGA 4677 platform, the board fully supports the newest PCI Express 5.0 interface. This guarantees the absence of bottlenecks when connecting the fastest next-generation NVMe drives and modern graphics accelerators.
Given the support for top-tier chips with a heat dissipation of up to 385W, the processor will require a highly efficient cooling system. You must use a specialized air super-cooler for workstations or a powerful liquid cooling system with mounting hardware strictly designed for the LGA 4677 socket.
The board features high-bandwidth PCIe 5.0 slots. Depending on the dimensions of the graphics cards’ own cooling systems, you can install several powerful professional graphics accelerators (GPUs) for parallel computing, 3D modeling, or working with artificial intelligence.
The Gigabyte MW53-HP0 is the ideal foundation for creating an uncompromisingly powerful yet compact workstation (High-End Desktop). It is perfectly suited for professional 3D modeling and animation, engineering design (CAD/CAM), ultra-high-definition video editing (4K/8K), and local big data analytics.
