New

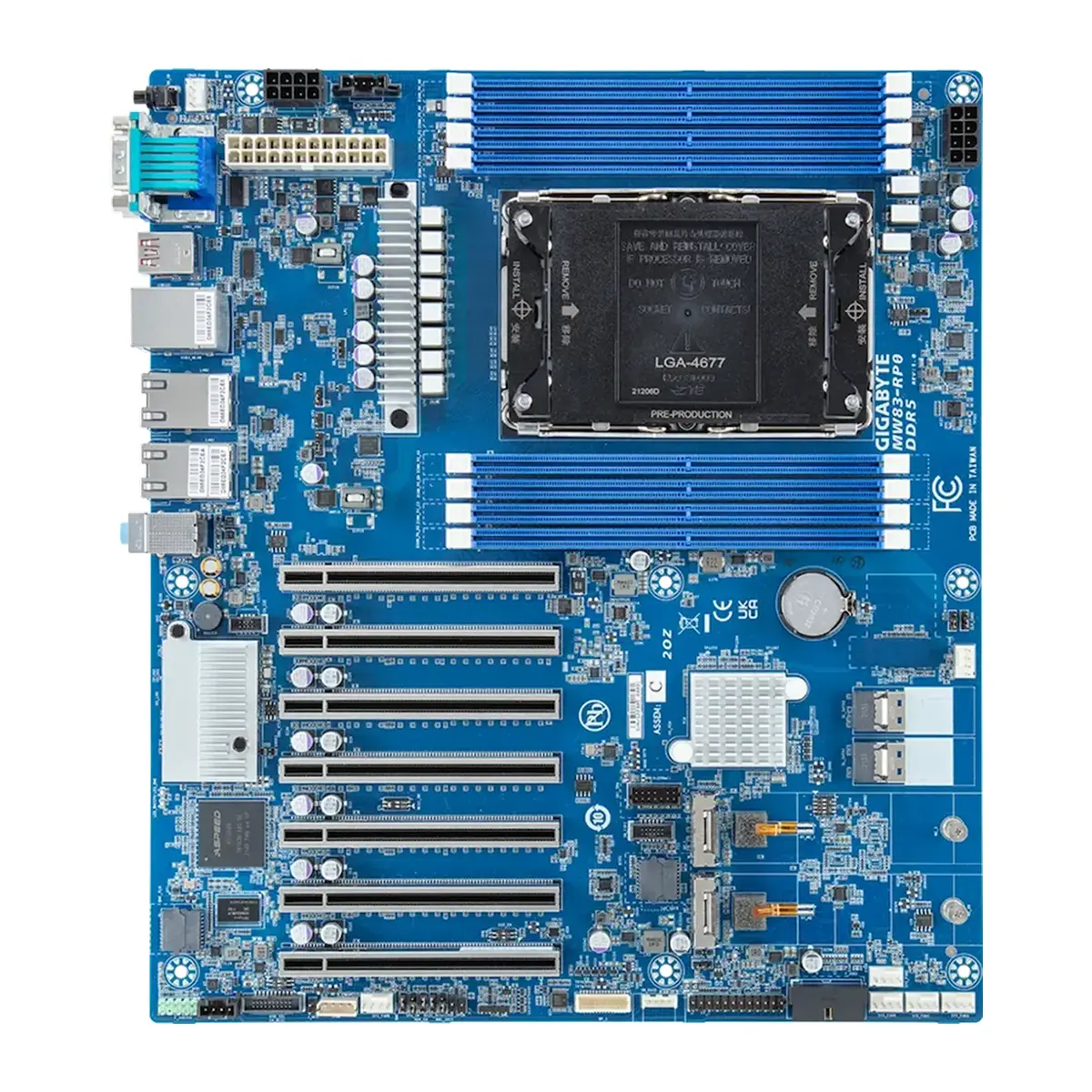

Gigabyte MW83-RP0
P/N: 9MW83RP0MR-00
1 141€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Gigabyte MW83-RP0 workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 2,2 kg |
|---|---|
| Dimensions | 38 × 31 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | MW83-RP0 |
| Memory type | DDR5 RDIMM |
| Maximum memory capacity | 512GB, 2TB |
| Processors on a motherboard | 1 |
| Length (cm) | 38 |
| Width (cm) | 31 |
| Weight (kg) | 2.2 |
| Socket | LGA 4677 |
| Chipset | Intel W790 |
| Max Supported CPU TDP (W) | 385 |
| Number of DIMM Slots | 8 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 10Gb/s (Intel X710-AT2) |
| Form Factor | CEB |
| Integrated RAID Controller | ASPEED AST2600 |
Product description
GIGABYTE MW83-RP0 – High-End W790 CEB Workstation Motherboard for Xeon W processors featuring Dual 10GbE and IPMI
The GIGABYTE MW83-RP0 represents a tier-one solution for building industrial-grade workstations. Utilizing the spacious CEB form factor (305mm x 267mm), this motherboard offers superior layout flexibility compared to traditional ATX options. It is engineered specifically to drive the computational capabilities of Intel Xeon W-3400 and W-2400 (LGA4677) processors, serving as the backbone for mission-critical tasks in visual effects, deep learning, and complex architectural simulation.
Uncompromised Performance and Reliability
Designed to sustain heavy workloads without throttling, the platform accommodates processors with a Thermal Design Power (TDP) of up to 385W. This robust power delivery system ensures that high-core-count CPUs (up to 60 cores) operate stably during prolonged rendering sessions or scientific calculations, providing the 24/7 durability expected in enterprise environments.
Advanced Memory Architecture
To eliminate data bottlenecks in memory-intensive applications, the system integrates eight DDR5 DIMM slots. When equipped with Xeon W-3400 series CPUs, the board activates an 8-channel memory path, delivering bandwidth that far exceeds consumer-grade platforms. It is validated for ECC RDIMM and 3DS RDIMM modules operating at speeds up to 4800 MT/s, ensuring data integrity is maintained alongside raw speed.
Next-Generation Expansion Capability
The larger CEB footprint allows for a dense configuration of expansion cards, essential for multi-accelerator setups. Users can deploy multiple professional GPUs or FPGA units via the available PCIe 5.0 x16 interfaces (lane distribution varies by CPU model). This Gen5 connectivity doubles the throughput of previous standards, removing limitations for modern AI inference hardware and high-fidelity real-time visualization.
Studio-Grade Connectivity and Management
High-speed networking is embedded directly onto the PCB via the Intel X710-AT2 controller, which provides dual 10GbE ports. This native integration removes the need for discrete network cards to achieve high-bandwidth connections to studio NAS or render clusters. Furthermore, the onboard ASPEED AST2600 BMC grants administrators comprehensive remote control capabilities. Through IPMI 2.0 and KVM-over-IP, IT teams can manage BIOS settings and monitor system health remotely, simplifying maintenance for headless nodes.
Tiered Storage Solution
The storage subsystem is architected to balance immediate access speed with massive archival capacity:
- System Speed: Two M.2 slots (PCIe 4.0 x4) are provided for NVMe SSDs, ensuring rapid operating system boot times and responsive application launching.
- Mass Storage: Two SlimSAS connectors provide breakout connectivity for up to 8 SATA 6Gb/s drives, enabling the creation of extensive local RAID arrays (0/1/5/10) for securing large project assets.
Recommended Deployment Scenarios
- Professional Rendering: Leveraging 8-channel DDR5 and multi-GPU support for Redshift or Octane pipelines.
- Machine Learning: Utilizing the high bandwidth of PCIe 5.0 for faster model training.
- Virtualization Infrastructure: Benefiting from high core counts and dual 10GbE uplinks for efficient VM hosting.
Technical Specifications Summary
- Platform Core: Intel W790 Chipset / Socket LGA4677
- Supported CPUs: Xeon W-3400 (8-Channel RAM) & W-2400 (4-Channel RAM)
- Memory Configuration: 8 Slots, DDR5 ECC RDIMM/3DS support
- Expansion: Multiple PCIe Gen5 x16 slots (CPU dependent)
- Networking: 2x 10GbE (Intel X710) + Dedicated Management LAN
- Remote Control: ASPEED AST2600 (IPMI / KVM)
- Storage Options: 2x M.2 Gen4 NVMe, 2x SlimSAS (SATA mode)
- Dimensions: CEB Form Factor (12″ x 10.5″)
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Gigabyte MW83-RP0 Motherboard
The Gigabyte MW83-RP0 is a high-performance, premium-class motherboard created for building the most powerful workstations based on the LGA 4677 socket. The platform relies on the advanced Intel W790 chipset and is engineered to unlock the full potential of the latest Intel Xeon W-3400 and W-2400 series scalable processors. A distinguishing feature of this model is the excellent balance between the CEB server form factor, colossal computing power, and the presence of ultimate high-speed out-of-the-box network interfaces.
This motherboard is hardware-optimized and designed for the following resource-intensive tasks:
- Working with large-scale network storage (NAS/SAN): The presence of two built-in 10GbE ports makes the board an ideal solution for instantly exchanging heavy source files and databases over a local network.
- Professional 3D modeling and video editing: High memory and I/O interface bandwidth ensure smooth operation with ultra-high-definition (8K) video and complex compositing.
- Artificial Intelligence and Machine Learning (AI/ML): Support for flagship processors with a huge core count and a TDP of up to 385W provides the necessary power for preprocessing datasets before sending them to the GPU.
- Engineering modeling and CAD/CAM: The platform guarantees absolute stability under extreme and prolonged computing loads required for complex simulations and rendering.
Comparative Table of Technical Specifications
Below is a comparison of the Gigabyte MW83-RP0 with its closest direct competitors on the Intel W790 chipset (LGA 4677 platform).
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Gigabyte MW83-RP0 | CEB | 1 | Intel W790 | 8x DDR5 RDIMM | 512GB/2TB | 2x 10Gb/s | 385 |
| Supermicro X13SWA-TF | E-ATX | 1 | Intel W790 | 16x DDR5 LRDIMM/RDIMM | 2TB/4TB | 1x 1Gb/s 1x 10Gb/s |
385 |
| Gigabyte MW53-HP0 | ATX | 1 | Intel W790 | 8x DDR5 RDIMM | 512GB/2TB | 2x 2.5Gb/s | 385 |
*RAM — Random Access Memory.
Analysis of Gigabyte MW83-RP0 Strengths
Based on the technical specifications, we can highlight the absolute advantages of the Gigabyte MW83-RP0 compared to competing solutions on the same socket:
- Ultimate network performance: The main and undeniable superiority of this board is the presence of two 10 Gigabit Ethernet ports (2x 10Gb/s). For comparison, Supermicro offers only one 10Gb/s port (paired with a standard 1Gb/s), and the entry-level Gigabyte model is limited to 2.5Gb/s ports. The dual 10-Gigabit interface allows for Link Aggregation to achieve a bandwidth of 20 Gbps or connect the workstation to two independent high-speed networks without buying additional expensive PCIe network cards.
- Balanced CEB form factor: The board is built in the SSI CEB format (305 x 267 mm). This makes it a golden mean: it is larger than standard ATX (which allows for better component routing and enhanced power delivery for 385W processors), yet it is much more compact than the massive E-ATX standard (used by Supermicro), allowing the board to fit into a wider range of professional cases.
- Uncompromising processor power: The board features a phenomenally reliable server-grade power delivery subsystem, guaranteeing the stable operation of top-tier Intel Xeon processors with a heat dissipation of up to 385W. The user gets maximum computing power without the slightest risk of frequency drops during prolonged loads.
- Optimal and sufficient memory subsystem: The presence of 8 slots supporting up to 2 TB of DDR5 RDIMM memory covers the requirements of the vast majority of modern workstation tasks (from graphics to engineering) with a massive margin, avoiding overpaying for a redundant 16-slot architecture if it is not strictly necessary.
Conclusion
The Gigabyte MW83-RP0 is an outstanding solution for building an uncompromising workstation, offering the perfect synergy of the LGA 4677 platform’s top-tier computing power and ultimate networking capabilities. Thanks to the two integrated 10Gb/s ports, flawless support for 385W Intel Xeon processors, and the thoughtfully designed CEB form factor, this motherboard becomes the undisputed leader for professionals whose work is inextricably linked with the constant movement of gigantic data volumes over the network and extreme computing loads.
Product FAQ
The board is equipped with a massive LGA 4677 socket and is built on the specialized Intel W790 chipset. It is designed to work with powerful Intel Xeon W-3400 and W-2400 series workstation processors, guaranteeing the stable operation of top-tier chips with a Thermal Design Power (TDP) of up to 385W.
This model is built in the SSI CEB server form factor (305 x 267 mm). It is slightly wider than standard ATX boards, so its installation will require a spacious Mid-Tower, Full-Tower, or professional server chassis whose specifications officially state support for CEB or E-ATX motherboards.
The motherboard features 8 RAM slots. You can install up to 2 TB of high-speed DDR5 server memory. This colossal capacity is more than enough to load the heaviest projects, databases, and complex 3D scenes into RAM.
No, the architecture of the professional Intel W790 platform exclusively requires the use of specialized registered memory (DDR5 RDIMM). Standard unbuffered modules (UDIMM) sold for the mainstream consumer segment are physically not supported by this motherboard.
One of the main and strongest advantages of the Gigabyte MW83-RP0 is the out-of-the-box presence of two ultra-fast integrated 10 Gigabit Ethernet ports (2x 10Gb/s). This allows you to instantly transfer massive datasets over a local network and work with high-speed network-attached storage (NAS/SAN) without the need to purchase expensive add-on network cards.
No, this board is a single-socket (1S) solution. However, modern Intel Xeon W series processors feature dozens of compute cores, so the performance of such a single-processor workstation easily surpasses many dual-processor server systems of previous generations.
Since the board is designed for processors with high heat dissipation (up to 385W), you will need a truly powerful cooling system. You must use a high-performance air super-cooler for workstations or a powerful liquid cooling system. The main requirement is that the cooling system must have specialized mounting hardware compatible with the LGA 4677 socket.
Yes, the motherboard fully supports the advanced PCI Express 5.0 bus standard. This guarantees maximum bandwidth for the most modern professional graphics cards (allowing the installation of multiple graphics accelerators) and the newest NVMe drives, eliminating bottlenecks during data processing.
The Gigabyte MW83-RP0 is an ideal foundation for building an uncompromising, high-performance workstation (High-End Desktop). It excels at resource-intensive tasks: machine learning and artificial intelligence (AI/ML), complex 3D rendering, professional 4K/8K video editing, and working with heavy engineering CAD/CAM systems.
