New
Supermicro H13SSL-NT
P/N: MBD-H13SSL-NT
989€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Supermicro H13SSL-NT workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 2,2 kg |
|---|---|
| Dimensions | 38 × 31 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | H13SSL-NT |
| Memory type | DDR5 RDIMM |
| Maximum memory capacity | 3TB |
| Processors on a motherboard | 1 |
| Length (cm) | 38 |
| Width (cm) | 31 |
| Weight (kg) | 2.2 |
| Socket | SP5 |
| Chipset | System on Chip |
| Max Supported CPU TDP (W) | 400 |
| Number of DIMM Slots | 12 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 10Gb/s (Broadcom BCM57416) |
| Form Factor | ATX |
| Integrated RAID Controller | ASPEED AST2600 |
Product description

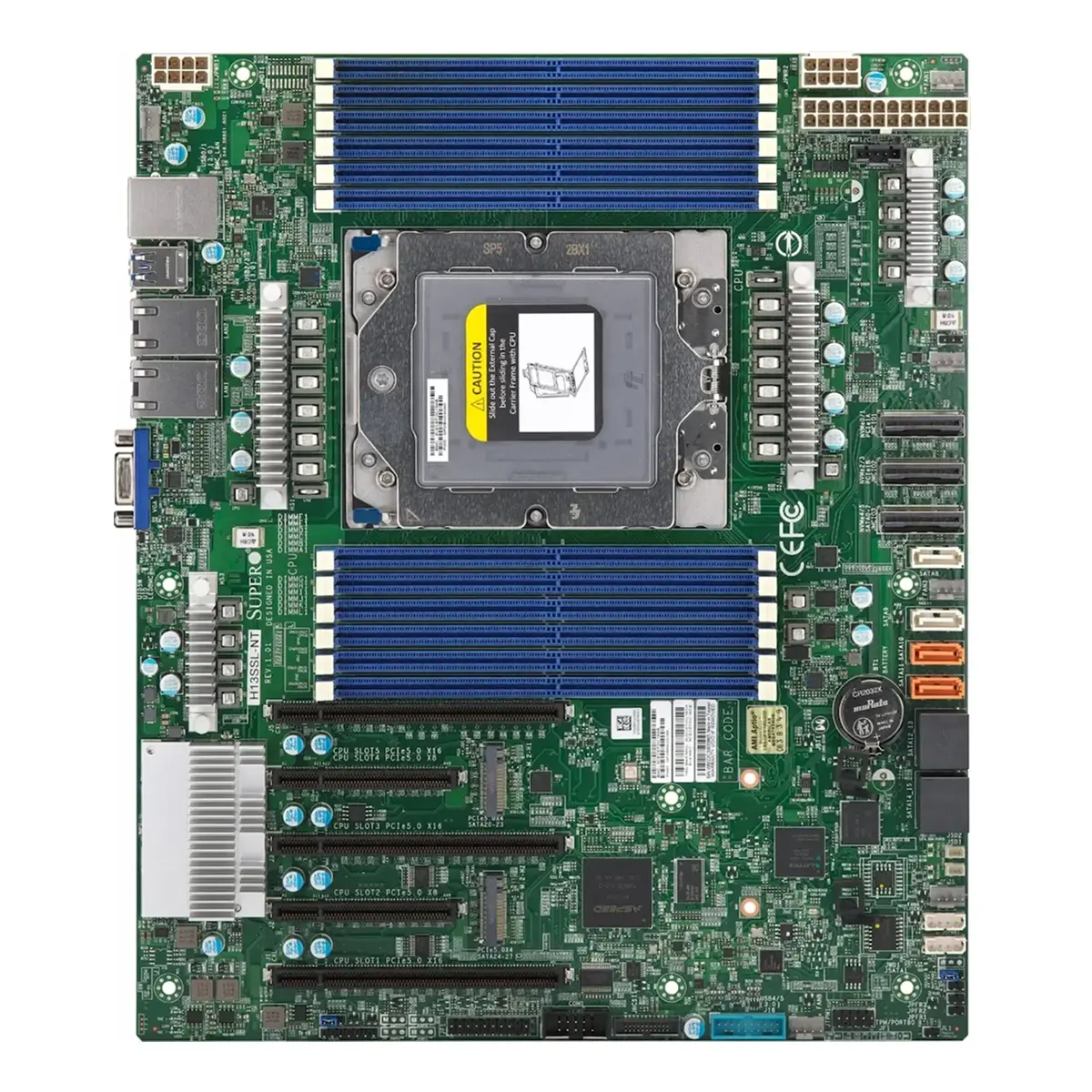

Supermicro H13SSL-NT – 10GbE Enabled ATX Platform for AMD EPYC 9005 with 12-Channel Memory
The Supermicro H13SSL-NT represents the pinnacle of compact workstation engineering, bringing data-center performance to the standard ATX form factor (12″ x 9.6″). Designed to host the latest AMD EPYC 9005 “Turin” and 9004 “Genoa” processors (Socket SP5), this motherboard eliminates the need for proprietary rack hardware. It integrates high-speed 10-Gigabit networking and next-generation connectivity directly onto the PCB, making it the superior choice for AI development, simulation, and high-performance virtualization.
Native 10-Gigabit Networking
A defining feature of the “NT” model is its enterprise-grade connectivity. Anchored by the Broadcom BCM57416 controller, the board provides dual 10GBase-T LAN ports. This enables immediate integration into high-speed storage networks (NAS/SAN) and corporate backbones without consuming a PCIe slot for an add-on card, ensuring maximum throughput for data-intensive workflows.
Unlocking 12-Channel DDR5 Performance
To feed the massive core counts of the SP5 architecture (up to 160 cores), the H13SSL-NT utilizes a cutting-edge 12-channel memory topology. With 12 DIMM slots available, system architects can install up to 3TB of DDR5 ECC RDIMM or 3DS RDIMM memory. This design ensures that memory-bound applications, such as Finite Element Analysis (FEA) or complex rendering, run at peak efficiency with speeds up to 4800+ MT/s.
Advanced MCIO and PCIe 5.0 Expansion
The board leverages the PCIe 5.0 standard to double the bandwidth for peripherals and storage. It features a sophisticated I/O layout:
- Expansion Slots: Three PCIe 5.0 x16 slots and two PCIe 5.0 x8 slots provide a massive pipeline for GPUs and FPGA accelerators.
- Versatile MCIO Connectivity: The board employs three MCIO connectors for high-density cabling. Two ports are dedicated PCIe 5.0 x8 links for NVMe SSDs, while the third is a Hybrid MCIO port (PCIe 5.0 x8 / SATA), which can be configured to support up to 8 SATA 6Gb/s drives.
Reliability and Remote Administration
System stability is paramount. The motherboard includes two M.2 NVMe slots (PCIe 5.0 x4) for creating redundant, high-speed boot volumes (RAID 1). For management, it integrates the ASPEED AST2600 BMC, providing secure IPMI 2.0 access and KVM-over-LAN via a dedicated RJ45 port. This ensures full remote control over the server, including BIOS updates and power cycling, significantly reducing on-site maintenance requirements.
Technical Specifications Summary
- Processor Support: AMD EPYC 9005/9004 (Socket SP5) / Up to 400W TDP
- Memory Topology: 12 DIMM Slots, 12-Channel DDR5 ECC (Up to 3TB)
- Network Interface: 2x 10GbE (Broadcom BCM57416) + Dedicated IPMI LAN
- Expansion Slots: 3x PCIe 5.0 x16 + 2x PCIe 5.0 x8
- Storage I/O: 2x MCIO (PCIe x8), 1x Hybrid MCIO (PCIe x8 / 8x SATA), 2x M.2 Gen5
- Management: ASPEED AST2600 BMC (IPMI / KVM)
- Form Factor: ATX (12″ x 9.6″)
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Supermicro H13SSL-NT Motherboard
The Supermicro H13SSL-NT is a single-socket ATX server motherboard designed for AMD EPYC 9004 (Genoa) and 9005 (Turin) processors based on the SP5 socket. This model is the “gold standard” for building compact and energy-efficient servers, offering an ideal balance between performance, expansion capabilities, and total cost of ownership.
The board is oriented towards a wide range of tasks:
- Corporate file servers and Software-Defined Storage (SDS).
- Web servers and small/medium business applications.
- Edge Computing thanks to the compact ATX format.
- Workstations for development and engineering calculations.
Comparative Table of Technical Specifications
Below is a comparison of the Supermicro H13SSL-NT with its closest competitors on the SP5 platform.
| Model | Form Factor | Max Number of Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Supermicro H13SSL-NT | ATX | 1 | System on Chip | 12x DDR5 RDIMM | 3TB | 2x 10Gb/s | 400 |
| Supermicro H13SSL-N | ATX | 1 | System on Chip | 12x DDR5 RDIMM | 3TB | 2x 1Gb/s | 400 |
| Gigabyte MZ33-AR1 | E-ATX | 1 | System on Chip | 24x DDR5 RDIMM | 6TB | 2x 10Gb/s | 500 |
| Gigabyte MZ73-LM2 | E-ATX | 2 | System on Chip | 24x DDR5 RDIMM | 6TB | 2x 10Gb/s | 500 |
| Gigabyte MZ73-LM1 | E-ATX | 2 | System on Chip | 24x DDR5 RDIMM | 3TB | 2x 10Gb/s | 400 |
| Gigabyte MZ73-LM0 | E-ATX | 2 | System on Chip | 24x DDR5 RDIMM | 6TB | 2x 10Gb/s | 400 |
*RAM — Random Access Memory.
Analysis of the Strengths of Supermicro H13SSL-NT
The Supermicro H13SSL-NT occupies a unique niche as a “universal soldier” on the SP5 platform, offering a number of advantages over its bulkier competitors:
- Compact ATX Format: This is the main competitive advantage. Unlike huge E-ATX boards (Gigabyte MZ33/MZ73), the H13SSL-NT easily fits into standard short-depth server chassis and even desktop chassis, making it ideal for edge computing and office servers.
- High-Speed Network (10GbE): A key difference from the lower-end H13SSL-N model is the presence of two 10GbE Base-T ports (Broadcom BCM57416). This provides Enterprise-level bandwidth “out of the box”, which is critical for virtualization and working with NVMe storage, without the need to occupy PCIe slots with network cards.
- Optimal Performance Balance: Support for processors with a TDP of up to 400W and 3 TB of memory is a reasonable maximum for a single-socket system. The board allows the use of powerful 96-core processors (except for the hottest 500W versions) without overpaying for an excessive power subsystem and the complex routing of 24 memory slots, as seen in the Gigabyte MZ33-AR1.
- Reliability and Ecosystem: The use of the ASPEED AST2600 BMC controller and Supermicro’s proven architecture guarantees broad compatibility and ease of remote administration, which is an industry standard.
Conclusion
The Supermicro H13SSL-NT is a benchmark platform for building compact and powerful single-processor servers. It offers the functionality of “grown-up” systems (10GbE network, PCIe 5.0, powerful CPU support) in the universal ATX format. This is the best choice for those who need maximum flexibility in chassis selection and do not chase extreme memory capacities exceeding 3 TB.
Product FAQ
Yes, the Supermicro H13SSL-NT motherboard is compatible with AMD EPYC 9004 (Genoa) and 9005 (Turin) series processors. However, supporting the 9005 series may require a BIOS update or the use of a specific board revision (usually version 2.x).
The main difference lies in the network interfaces. The H13SSL-NT is equipped with two high-speed 10 Gigabit Ethernet (10GbE Base-T) ports, whereas the H13SSL-N model has only Gigabit ports (1GbE).
Yes, this is one of the model’s key advantages. It is designed in the standard ATX form factor (305W x 244D mm), allowing it to be installed in most standard computer cases (Midi-Tower, Full-Tower) and short-depth server chassis, unlike larger E-ATX boards.
The board features 12 DIMM slots and supports up to 3 TB of DDR5 RDIMM 3DS registered memory. The memory operates in 12-channel mode, ensuring high bandwidth.
Yes, you will need a cooler compatible with the SP5 socket (LGA 6096). Given that the board supports processors with a TDP of up to 400W, the cooling system must be sufficiently powerful and efficient.
The Supermicro H13SSL-NT offers 3 PCIe 5.0 x16 slots and 2 PCIe 5.0 x8 slots. This allows for the installation of modern graphics cards, NVMe drives, and other expansion cards utilizing the high-speed PCIe Gen5 interface.
The board does not have a hardware RAID controller for SAS drives. However, it supports software RAID for SATA drives and allows creating RAID arrays from NVMe drives using processor and operating system resources.
The model is equipped with an ASPEED AST2600 BMC controller. It provides full-featured remote management (IPMI 2.0, KVM over IP, Virtual Media) via a dedicated RJ45 network port, allowing you to administer the server from anywhere in the world.
No, the board works only with server-grade Registered DDR5 RDIMM (ECC) memory. Standard Unbuffered UDIMM memory used in home computers is not supported.
