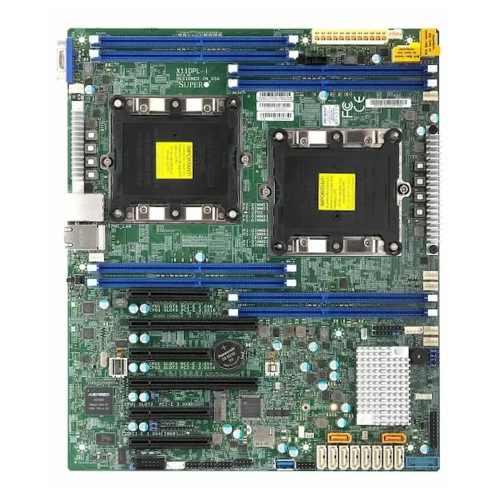

Supermicro X11DPL-I
P/N: MBD-X11DPL-I
922€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Supermicro X11DPL-I workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 1,8 kg |
|---|---|
| Dimensions | 34 × 34 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | X11DPL-I |
| Memory type | DDR4 LRDIMM, DDR4 RDIMM |
| Maximum memory capacity | 2TB |
| Processors on a motherboard | 2 |
| Length (cm) | 34 |
| Width (cm) | 34 |
| Weight (kg) | 1.8 |
| Socket | LGA 3647 |
| Chipset | Intel C622 |
| Max Supported CPU TDP (W) | 205 |
| Number of DIMM Slots | 8 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 10Gb/s (Intel X722+X557) |
| Form Factor | ATX |
| Integrated RAID Controller | ASPEED AST2500 |
Product description
Supermicro X11DPL-I: High-Density Dual-Socket Architecture in a Standard ATX Form Factor
Achieving enterprise-grade performance within a compact physical footprint is the defining characteristic of the Supermicro X11DPL-I. Unlike bulky proprietary server boards, this model successfully integrates the raw power of two Intel Xeon Scalable processors (supporting both Skylake-SP and Cascade Lake-SP architectures) onto a standard ATX printed circuit board (12″ x 9.6″). This unique engineering feat allows system builders to deploy high-performance, dual-socket nodes using widely available mid-tower chassis, making it a versatile choice for cost-effective virtualization clusters and specialized industrial applications.
Processor Support and Thermal Efficiency
The platform is built around the reliable Intel C621 chipset and utilizes the LGA3647 socket interface. It is specifically engineered to accommodate CPUs with a Thermal Design Power (TDP) of up to 140W. This design choice ensures optimal stability and energy efficiency, making it perfectly suited for the Silver and Gold tiers of the Xeon Scalable family. Communication between the two sockets is handled by a high-speed UPI link (up to 10.4 GT/s), ensuring that multi-threaded workloads suffer minimal latency.
Memory and Data Integrity Subsystem
To handle data-intensive operations, the X11DPL-I employs an 8-slot memory configuration. This layout enables the installation of up to 2TB of DDR4 memory (using ECC 3DS LRDIMM modules) operating at frequencies reaching 2933 MHz. The inclusion of enterprise-grade ECC (Error Checking and Correction) logic provides a safety net against single-bit errors, which is critical for servers running 24/7 without interruption.
Native Storage and NVMe Acceleration
Storage flexibility is a key advantage of this motherboard. It eliminates the immediate need for external RAID cards by providing 10 integrated SATA 3.0 ports (6Gbps). These ports are managed by the chipset and offer hardware-level support for RAID 0, 1, 5, and 10 arrays, allowing for robust data redundancy. Additionally, the board features a dedicated M.2 interface (PCIe 3.0 x4), designed to house ultra-fast NVMe SSDs (up to 2280 size) for the operating system, ensuring that boot times and application loading are virtually instantaneous.
Expansion and Networking Capabilities
Despite its compact ATX dimensions, the X11DPL-I offers impressive expandability. It provides access to six PCIe 3.0 slots in a mixed configuration (two x16 lanes, three x8 lanes, and one x4 lane), offering ample room for additional network cards, storage controllers, or basic GPU accelerators.
Network connectivity is delivered via a Dual Gigabit Ethernet solution powered by the Intel X722 controller. For remote administration, the system integrates an ASPEED AST2500 BMC chip. This component facilitates full IPMI 2.0 management, enabling “lights-out” control, real-time health monitoring, and KVM-over-LAN functionality, which is essential for maintaining servers located in remote data centers.
Strategic Deployment Use Cases
- Space-Constrained Servers: Perfect for deploying dual-CPU power in environments where rack space is limited or only standard towers fit.
- Budget-Friendly Virtualization: An ideal host for SMBs running VMs, balancing core count with affordability.
- Software-Defined Storage: With 10 native SATA ports, it serves as an excellent foundation for ZFS or Ceph storage appliances.
Model Comparison: Making the Right Choice
When evaluating the Supermicro X11 lineup, consider the following distinctions:
- Select the X11DPL-I (This Product): If your priority is fitting a dual-socket system into a standard ATX case and utilizing CPUs under 140W TDP.
- Select the X11DPI-N: If you require the larger E-ATX form factor to support higher-wattage CPUs (205W) and need double the memory slots (16 DIMMs).
- Select the X11DPI-NT: If your infrastructure demands onboard 10GbE networking speeds out of the box.
Why Buy From Us?
- Authentic Hardware: Sourced directly through official global distribution channels to guarantee genuineness.
- Expert Support: We provide consultation on compatible RAM and chassis selection to ensure a seamless build.
- Comprehensive Warranty: Includes full warranty coverage (1-3 years) for peace of mind.
Summary: The Supermicro X11DPL-I is a standout product that defies form factor limitations. It brings the massive parallel processing of the Xeon Scalable platform to the compact world of ATX, offering a robust, manageable, and highly expandable foundation for diverse enterprise needs.
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Supermicro X11DPL-I Motherboard
The Supermicro X11DPL-I is a unique dual-socket server motherboard built in a standard and compact ATX form factor. It is designed to work with 1st and 2nd Generation Intel Xeon Scalable processors based on the LGA 3647 socket. Utilizing the reliable enterprise-grade Intel C621 chipset, this model offers unprecedented compute density, combining the multi-threaded power of two processors at once within dimensions typically reserved exclusively for single-processor systems.
The motherboard is hardware-optimized and intended for the following computing tasks:
- High-Density Virtualization: The presence of two processor sockets allows for a massive number of compute cores to be housed in a compact chassis, making it ideal for running multiple virtual machines.
- Compact Compute Clusters (HPC): Thanks to the ATX format, servers based on this board take up minimal rack space while delivering high parallel performance.
- Web Servers and Databases: Dividing threads between two processors guarantees the rapid processing of a large volume of simultaneous client requests.
- Rendering and Media Processing: The doubled computing power of the processors is critical for tasks requiring intensive, multi-threaded data calculation.
Comparative Table of Technical Specifications
Below is a comparison of the Supermicro X11DPL-I with its competitors from the LGA 3647 socket lineup.
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Supermicro X11DPL-I | ATX | 2 | Intel C621 | 8x DDR4 LRDIMM/RDIMM | 2TB | 2x 1Gb/s | 140 |
| Supermicro X11SPL-F | ATX | 1 | Intel C621 | 8x DDR4 LRDIMM/RDIMM | 2TB | 2x 1Gb/s | 165 |
| Supermicro X11DPI-N | E-ATX | 2 | Intel C621 | 16x DDR4 LRDIMM/RDIMM | 2TB/4TB | 2x 1Gb/s | 205 |
*RAM — Random Access Memory.
Analysis of Supermicro X11DPL-I Strengths
Based on the technical specifications, we can highlight the key advantages of the Supermicro X11DPL-I compared to its competitors on the LGA 3647 platform:
- Unprecedented compute density (ATX and 2 processors): This is the main and absolute advantage of this model. Unlike the dual-socket X11DPI-N board, which requires large and spacious E-ATX cases, the X11DPL-I model fits two sockets into the compact ATX standard. This allows for building highly powerful multi-threaded servers in compact chassis (e.g., short-depth 1U/2U servers), significantly saving physical rack space.
- Twofold superiority in multi-threading: In a direct comparison with the single-socket X11SPL-F board in the same ATX form factor, the X11DPL-I model provides the ability to install a second processor. This means a radical increase in the number of compute cores and a doubling of system bandwidth, which is critical for high-load enterprise tasks.
- Energy efficiency and heat dissipation control: The structural density of two processors on an ATX board imposes a 140W limit on the Thermal Design Power (TDP) of the processors. Unlike the 165W or 205W limits of its competitors, this restriction is a strong point for creating quiet and energy-efficient systems. Using energy-saving processor models allows for a simpler cooling system and reduces the overall energy consumption costs of the server.
- Sufficient and balanced memory subsystem: The presence of 8 slots supporting up to 2 TB of DDR4 LRDIMM/RDIMM RAM is completely identical to the single-socket X11SPL-F model. This capacity is more than enough for the vast majority of virtualization tasks in the compact segment.
Conclusion
The Supermicro X11DPL-I is a masterpiece of engineering layout, offering all the power of the dual-socket LGA 3647 architecture in an incredibly compact ATX format. The motherboard flawlessly outperforms its single-processor competitors in terms of compute core count, while maintaining modest requirements for physical server chassis space. Support for energy-efficient processors (TDP up to 140W) and up to 2 TB of RAM makes it an ideal foundation for creating powerful, scalable, yet compact and economical enterprise-class compute nodes.
Product FAQ
This model features two LGA 3647 sockets and is designed to work with 1st and 2nd Generation Intel Xeon Scalable server processors (Bronze, Silver, and Gold series). It is important to note that due to the compact design of the board, it supports energy-efficient processor models with a Thermal Design Power (TDP) of up to 140W.
Yes! This is one of the main and unique features of the X11DPL-I model. Despite having two processor sockets, the board is built in the standard and compact ATX form factor (305 x 254 mm). It will easily fit into most universal server cases (including short-depth servers) and Tower cases.
No, the motherboard can fully function with a single processor installed (in the primary CPU1 socket). However, in this case, you will only have access to 4 RAM slots and only the PCIe expansion slots that are hardware-linked to the first processor.
The board features 8 RAM slots (4 slots per processor). When using two processors, you can install a total of up to 2 TB of high-speed DDR4 server memory with error correction (RDIMM and LRDIMM modules are supported).
The motherboard is equipped with two integrated Gigabit ports (2x 1GbE RJ45), which are perfectly suited for standard management traffic and basic routing. For faster connections (10 Gbps and higher), available PCIe slots can be used.
The board is an enterprise-class solution and is equipped with a built-in Baseboard Management Controller (BMC ASPEED AST2500) with a separate dedicated IPMI LAN port. This allows system administrators to remotely control power, update the BIOS, monitor component temperatures, and have full access to the server via a virtual KVM console.
Since the two processors are located quite close to each other on the compact ATX board, proper cooling organization is required. You must use compatible server heatsinks for the LGA 3647 socket, and the server chassis must provide a powerful, direct-through airflow to dissipate heat effectively.
Yes, the board features multiple SATA3 (6 Gbps) ports with software RAID support for connecting high-capacity hard disk drives (HDDs) or solid-state drives (SSDs). In addition, PCI Express 3.0 slots allow the installation of ultra-fast NVMe drives via adapter cards.
The Supermicro X11DPL-I is an ideal foundation for creating powerful yet compact and energy-efficient servers. It is perfectly suited for high-density small to medium-scale virtualization, high-traffic web hosting, local databases, and compute nodes in infrastructures where saving physical rack space is a critical issue.
