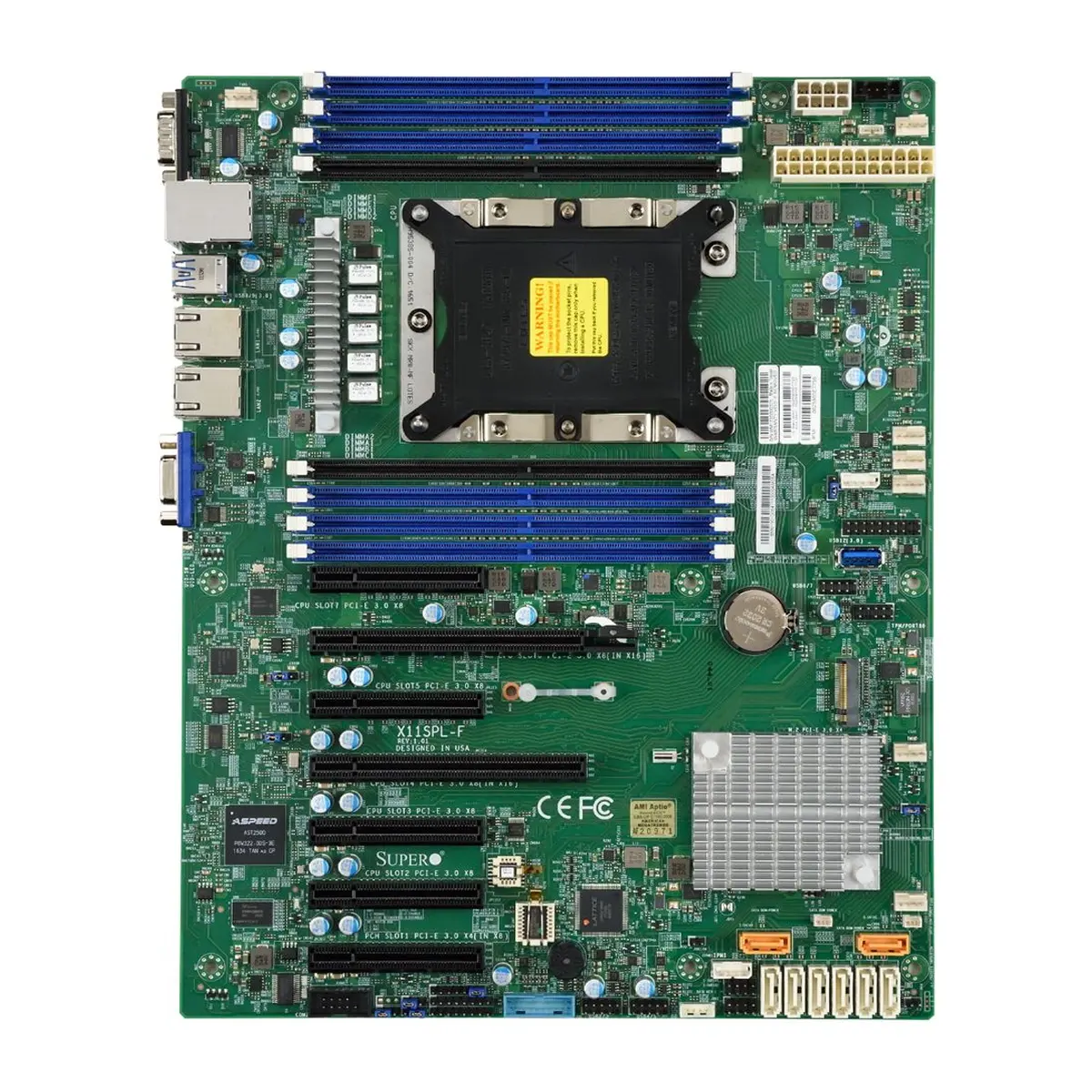

Supermicro X11SPL-F
P/N: MBD-X11SPL-F
796€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Supermicro X11SPL-F workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 1,8 kg |
|---|---|
| Dimensions | 34 × 34 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | X11SPL-F |
| Memory type | DDR4 LRDIMM, DDR4 RDIMM |
| Maximum memory capacity | 2TB |
| Processors on a motherboard | 1 |
| Length (cm) | 34 |
| Width (cm) | 34 |
| Weight (kg) | 1.8 |
| Socket | LGA 3647 |
| Chipset | Intel C621 |
| Max Supported CPU TDP (W) | 165 |
| Number of DIMM Slots | 8 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 1Gb/s (Intel I210-AT) |
| Form Factor | ATX |
| Integrated RAID Controller | ASPEED AST2500 |
Product description
Supermicro X11SPL-F: The Versatile Foundation for Xeon Scalable Servers
The Supermicro X11SPL-F stands out as a robust, single-socket ATX motherboard designed to maximize the potential of the Intel Xeon Scalable platform (Gen 1 and Gen 2). Built upon the reliable Intel C621 chipset and featuring the LGA3647 socket, this board is engineered for system integrators who need a flexible balance between cost, performance, and expandability. It is the ideal choice for building mid-range enterprise servers, medical appliances, and industrial workstations where stability is non-negotiable.
Multi-Core Processing and Expanded Memory Capacity
At the heart of the X11SPL-F is its ability to support high-performance computing workloads. It accommodates processors ranging from the Bronze to Platinum series (up to 28 cores) with a TDP of up to 205W. Unlike standard desktop boards, this model features an optimized 6-channel memory architecture spread across 8 physical DIMM slots. This design allows users to install up to 2TB of 3DS ECC DDR4 memory, ensuring that memory-hungry applications like virtualization hosts and database managers run without bottlenecks. The inclusion of ECC (Error Correcting Code) technology further guarantees data integrity by detecting and fixing single-bit errors in real-time.
Superior Scalability for Storage and Add-on Cards
One of the defining features of the X11SPL-F is its exceptional expansion capability within a standard ATX footprint. The board offers a comprehensive array of PCIe lanes, including two PCIe 3.0 x16 slots for high-bandwidth peripherals such as GPUs or FPGA accelerators, and five additional PCIe 3.0 x8 slots for networking or RAID controllers.
For data storage, the motherboard is equipped with a PCIe 3.0 x4 M.2 interface for ultra-fast NVMe boot drives (supporting sizes up to 22110). Additionally, it provides 10 SATA 3.0 ports, making it a perfect candidate for software-defined storage solutions (SDS) or high-capacity video surveillance servers (NVR) that require massive local storage arrays.
Enterprise-Grade Management and Connectivity
Designed for professional environments, the X11SPL-F ensures seamless integration into existing network infrastructures. It features Dual Gigabit Ethernet ports driven by the industry-standard Intel i210 controller. More importantly, the board includes a dedicated IPMI LAN port backed by the ASPEED AST2500 BMC. This allows system administrators to perform “lights-out” management—monitoring server health, updating BIOS, and troubleshooting via a remote KVM console without needing physical access to the machine.
Why Deploy the X11SPL-F?
- Proven Reliability: A mature platform validated for 24/7 continuous operation in critical sectors.
- Flexible Form Factor: The standard ATX size ensures compatibility with a vast range of rackmount and tower chassis.
- Legacy Support: Ideal for maintaining and expanding infrastructure based on Skylake-SP and Cascade Lake-SP architectures.
- Cost-Effective Performance: Delivers server-grade features like IPMI and ECC at a price point accessible for SMBs.
Summary
The Supermicro X11SPL-F is more than just a motherboard; it is a dependable workhorse for the modern data center. By combining massive RAM support (via 8 DIMM slots), extensive PCIe expandability, and comprehensive remote management tools, it offers a future-proof solution for businesses looking to optimize their IT infrastructure without overspending.
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Supermicro X11SPL-F Motherboard
The Supermicro X11SPL-F is a highly reliable single-socket ATX server motherboard designed to work with 1st and 2nd Generation Intel Xeon Scalable processors (LGA 3647 socket). The platform is based on the proven enterprise Intel C621 chipset. It provides excellent compute density, extensive memory expansion capabilities, and high energy efficiency within a standard and versatile form factor.
The motherboard is hardware-optimized and designed for the following tasks:
- Small and Medium Business Servers: An excellent foundation for deploying domain controllers and file servers for local infrastructure.
- Storage Nodes: The presence of a sufficient number of PCIe lanes and SATA ports allows for the connection of massive data storage and RAID controllers.
- Entry-Level Virtualization Systems: Support for up to 2 TB of DDR4 RAM allows running multiple virtual machines on a single physical host.
- Edge Computing: Thanks to its compact ATX format, the board can be used in short-depth servers installed outside traditional data centers.
Comparative Table of Technical Specifications
Below is a comparison of the Supermicro X11SPL-F with its competitors from the LGA 3647 socket lineup.
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Supermicro X11SPL-F | ATX | 1 | Intel C621 | 8x DDR4 LRDIMM/RDIMM | 2TB | 2x 1Gb/s | 165 |
| Supermicro X11DPI-N | E-ATX | 2 | Intel C621 | 16x DDR4 LRDIMM/RDIMM | 2TB/4TB | 2x 1Gb/s | 205 |
| Supermicro X11DPL-I | ATX | 2 | Intel C621 | 8x DDR4 LRDIMM/RDIMM | 2TB | 2x 1Gb/s | 140 |
*RAM — Random Access Memory.
Analysis of Supermicro X11SPL-F Strengths
Based on the technical specifications, we can highlight the key advantages of the Supermicro X11SPL-F compared to other solutions on the LGA 3647 platform:
- Optimal balance of processor power (165W TDP) and dimensions: Unlike the dual-socket Supermicro X11DPL-I motherboard, which is also in the ATX format but limited to supporting processors with a TDP of only up to 140W due to its dense layout, the X11SPL-F model can stably operate with more powerful chips up to 165W. This allows the installation of a single, yet much higher-frequency and higher-performing processor, without sacrificing per-core computing speed.
- Versatility of the ATX form factor: Compared to the higher-end Supermicro X11DPI-N model, which requires large-sized E-ATX server chassis, the X11SPL-F board is built in the standard ATX size. This provides colossal flexibility when deploying infrastructure, allowing the system to be installed in most available server racks (1U/2U/4U) and Tower cases, saving physical space.
- Robust memory subsystem: Despite its single-socket architecture, the board supports the installation of up to 2 TB of high-speed DDR4 server memory (8 slots). This figure is absolutely identical to the maximum RAM capacity of the dual-socket ATX board (X11DPL-I), making the X11SPL-F exceptionally efficient for memory-intensive tasks (e.g., databases) without the need to transition to a more complex architecture.
- Unified network interfaces: The presence of two 1Gb/s ports is a recognized standard for enterprise management and routing management traffic. This leaves PCIe lanes free for installing specialized network adapters (10GbE or 25GbE) based on specific architectural needs.
Conclusion
The Supermicro X11SPL-F is a reference single-socket platform for the LGA 3647 socket. It wins through the ideal combination of support for high-performance processors (up to 165W), a massive RAM capacity of up to 2 TB, and the versatile, compact ATX form factor. This motherboard is the optimal foundation for building reliable, easily scalable, and balanced enterprise-class server nodes when the computing power of a single flagship Intel Xeon processor is sufficient to cover all architectural tasks.
Product FAQ
This model features the LGA 3647 socket and is designed for 1st and 2nd Generation Intel Xeon Scalable server processors (Bronze, Silver, Gold, Platinum). The reinforced power delivery subsystem allows for the installation of processors with a Thermal Design Power (TDP) of up to 165W.
The board features 8 memory slots. You can install up to 2 TB of high-speed DDR4 server memory (error-correcting ECC RDIMM and LRDIMM modules are supported). This capacity is sufficient for working with demanding databases and virtualization systems.
One of the main advantages of the Supermicro X11SPL-F is its standard, compact ATX form factor (305 x 244 mm). Thanks to this, the board easily installs into most universal server chassis (1U, 2U, 4U Rackmount), as well as standard Tower cases, saving space in the server rack.
No, this model is a single-socket (1S) motherboard. It is designed to provide maximum performance, energy efficiency, and memory density within a single compute node.
The rear panel of the motherboard features two standard Gigabit network ports (1GbE RJ45). This is a versatile baseline solution for management traffic and administration. Connecting to high-speed networks will require the installation of an additional network card (e.g., 10GbE or 25GbE) into an available PCIe slot.
The platform offers excellent expansion capabilities. The board features several PCI Express 3.0 slots (including full-speed x16 and x8 slots), which allows you to seamlessly install hardware RAID controllers, additional network adapters, or entry-level graphics cards.
The board is designed for the enterprise segment and is equipped with an integrated Baseboard Management Controller (BMC) with a dedicated IPMI LAN port. This allows system administrators to remotely control power, update the BIOS, monitor sensor readings (temperatures, fans), and manage the server via a virtual KVM console.
The board itself has a large number of SATA3 (6 Gbps) ports for connecting traditional hard disk drives (HDDs) and enterprise-class solid-state drives (SSDs). Installing high-speed M.2 NVMe drives may require the use of a simple PCIe slot adapter.
The Supermicro X11SPL-F is an ideal, time-tested foundation for small and medium-sized business servers. It is perfectly suited for deploying domain controllers, reliable file storage, accounting servers, and basic virtualization nodes where the stability of Supermicro’s architecture and budget optimization are crucial.
