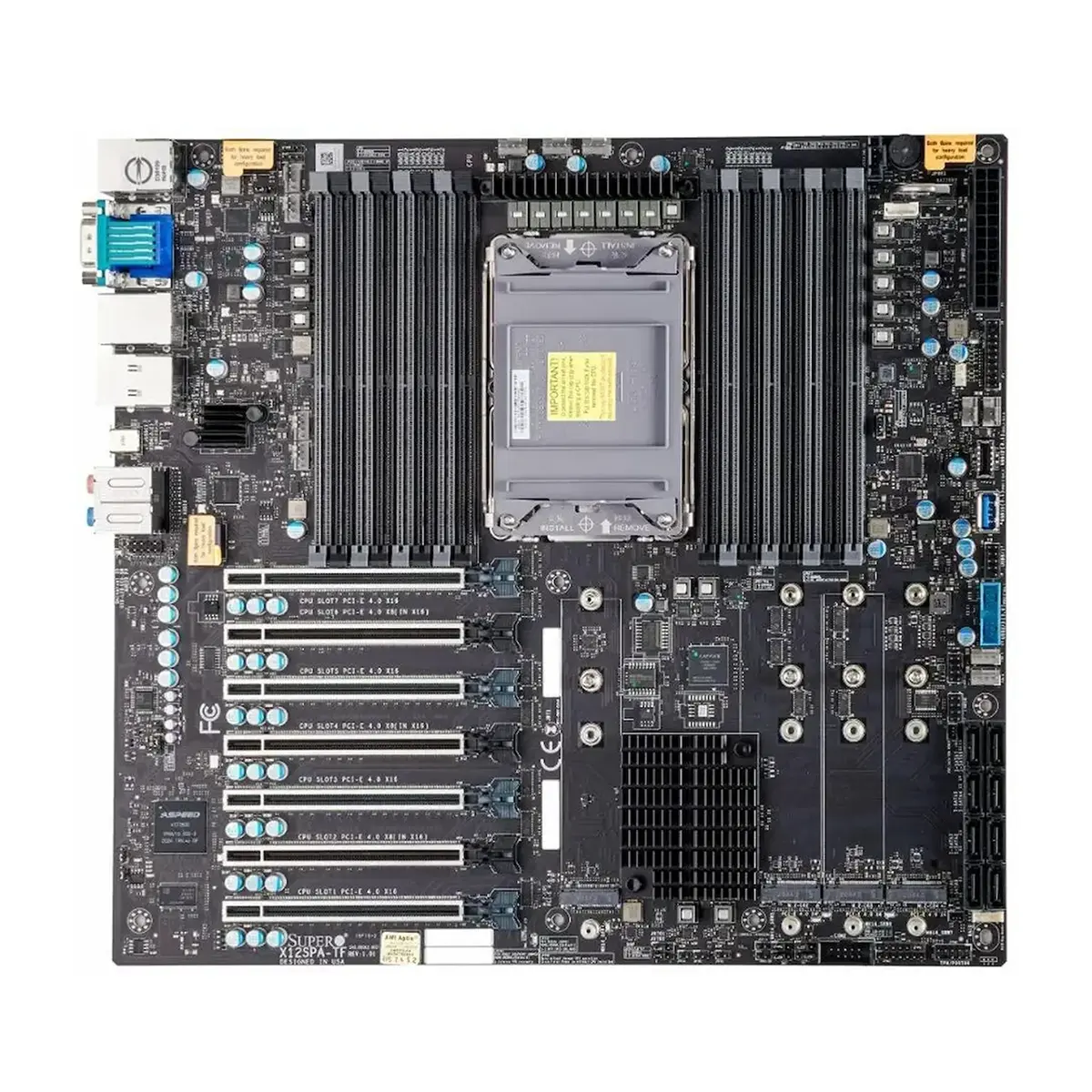

Supermicro X12SPA-TF
P/N: MBD-X12SPA-TF
995€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Supermicro X12SPA-TF workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 1,8 kg |
|---|---|
| Dimensions | 34 × 34 × 8 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | X12SPA-TF |
| Memory type | DDR4 LRDIMM, DDR4 RDIMM |
| Maximum memory capacity | 4TB |
| Processors on a motherboard | 1 |
| Length (cm) | 34 |
| Width (cm) | 34 |
| Weight (kg) | 1.8 |
| Socket | LGA 4189 |
| Chipset | Intel C621A |
| Max Supported CPU TDP (W) | 270 |
| Number of DIMM Slots | 16 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 1x 10Gb/s (Marvell AQC113), 1x 1Gb/s (Intel I210-AT) |
| Form Factor | E-ATX |
| Integrated RAID Controller | ASPEED AST2500 |
Product description
Supermicro X12SPA-TF: The Ultimate Single-Socket Powerhouse for Xeon W-3300 Workstations
The Supermicro X12SPA-TF redefines what is possible on a single-processor platform. Built upon the enterprise-grade Intel C621A chipset, this E-ATX motherboard serves as a robust foundation for the Intel Xeon W-3300 and 3rd Gen Xeon Scalable (Ice Lake-SP) processor families. By utilizing the LGA4189 socket to support CPUs with up to 40 cores and a 270W TDP, it offers a strategic advantage: delivering the memory density and I/O bandwidth typically reserved for dual-socket servers, but within a cost-effective single-socket architecture.
Unrivaled Memory Capacity: 16 DIMM Slots
A defining feature of the X12SPA-TF is its massive memory footprint. Unlike standard workstations that limit you to 8 slots, this board provides 16 DDR4 DIMM slots. This engineering feat allows professionals to install up to 4TB of ECC RDIMM/LRDIMM 3DS memory running at 3200 MT/s.
For data-centric applications, the board fully supports Intel Optane Persistent Memory 200 Series. This transforms the system into an analytics beast, perfect for large-scale in-memory databases (IMDB) and complex simulations where low latency is non-negotiable.
Next-Generation PCIe 4.0 Connectivity
Designed for the era of high-speed computing, the X12SPA-TF eliminates bandwidth bottlenecks. It features a comprehensive array of Gen4 expansion slots:
- 4 x PCIe 4.0 x16 slots: Ideal for multi-GPU rendering setups, AI inference cards, or FPGA accelerators.
- 3 x PCIe 4.0 x8 slots: Perfect for 100GbE network cards or advanced RAID controllers.
This layout ensures that even the most demanding peripherals communicate directly with the CPU at maximum speed.
Hybrid Storage and High-Speed Networking
Storage flexibility is core to the design. The board integrates an M.2 slot (PCIe 4.0 x4) for ultra-fast NVMe OS booting and caching. For bulk data, the C621A controller manages 8 x SATA 3.0 ports, supporting robust RAID 0, 1, 5, and 10 arrays natively.
Networking capabilities are equally impressive “out of the box.” The board includes a 10GBase-T port (powered by the Marvell AQC113) for rapid asset transfer and a standard 1GbE port (Intel I210-AT) for legacy connectivity. This dual-tier approach saves the cost and PCIe lanes required for add-on network cards.
Enterprise-Grade Management (IPMI)
Operational efficiency is guaranteed via the onboard ASPEED AST2500 BMC. This dedicated controller provides full IPMI 2.0 remote management capabilities, including KVM-over-LAN and Virtual Media. Administrators can monitor system health, manage power, and update firmware remotely, significantly reducing on-site maintenance requirements.
Strategic Use Cases
- Software Licensing Optimization: Ideal for Oracle or VMware environments where licensing costs are tied to the number of CPU sockets. You get maximum RAM without paying for a second CPU.
- 3D Content Creation: A perfect host for a 30+ core Xeon W-3300 combined with multiple NVIDIA RTX GPUs.
- Scientific Research: Capable of holding massive datasets in RAM/Optane memory for fluid dynamics or genomic sequencing.
Technical Specifications Overview
|
|
Verdict: The Supermicro X12SPA-TF is the smart choice for professionals who need the expandability of a server and the clock speeds of a workstation. By bridging the gap between single and dual-socket systems, it offers a high-performance, cost-efficient platform for the most demanding workloads.
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Supermicro X12SPA-TF Motherboard
The Supermicro X12SPA-TF is a high-performance, premium-level single-socket motherboard built in the E-ATX form factor. It is designed to work with 3rd Generation Intel Xeon Scalable processors (Ice Lake architecture) based on the LGA 4189 socket. The platform is based on the advanced Intel C621A server chipset and is specifically engineered to create uncompromising workstations and high-performance compute nodes that require colossal amounts of RAM and high-speed network interfaces.
This motherboard is hardware-optimized and intended for the following resource-intensive tasks:
- Artificial Intelligence and Machine Learning (AI/ML): A large number of available PCIe lanes from the processor and a spacious form factor allow for the installation of multiple high-performance graphics accelerators (GPUs) for training neural networks.
- 3D Rendering, Animation, and Media Processing: Support for processors with a massive core count and a TDP of up to 270W ensures minimal calculation time for complex 3D scenes and ultra-high-definition video.
- Engineering Modeling and CAD/CAM: The integration of up to 4 TB of high-speed RAM allows for loading gigantic projects, complex simulations, and blueprints into memory without delays.
- Working with Network-Attached Storage (NAS/SAN): The presence of an integrated 10-Gigabit network interface allows for the instant exchange of heavy source files over a local network.
Comparative Table of Technical Specifications
Below is a comparison of the Supermicro X12SPA-TF with its closest competitors on the Intel C621A chipset (LGA 4189 platform).
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Supermicro X12SPA-TF | E-ATX | 1 | Intel C621A | 16x DDR4 LRDIMM/RDIMM | 4TB | 1x 1Gb/s 1x 10Gb/s |
270 |
| Supermicro X12DPI-N6 | E-ATX | 2 | Intel C621A | 18x DDR4 LRDIMM/RDIMM | 4TB | 2x 1Gb/s | 270 |
| Gigabyte MU72-SU0 | ATX | 1 | Intel C621A | 8x DDR4 LRDIMM/RDIMM | 2TB | 2x 1Gb/s | 270 |
| Gigabyte MD72-HB3 | E-ATX | 2 | Intel C621A | 16x DDR4 LRDIMM/RDIMM | 4TB | 2x 1Gb/s | 270 |
*RAM — Random Access Memory.
Analysis of Supermicro X12SPA-TF Strengths
Based on the technical specifications, we can highlight the absolute advantages of the Supermicro X12SPA-TF compared to competing solutions on the same socket:
- Unprecedented memory subsystem for a single-socket board: The main and undeniable advantage of this model is the presence of 16 RAM slots, allowing the installation of up to 4 TB of RAM. Its direct single-socket competitor (Gigabyte MU72-SU0) has only 8 slots with a 2 TB limit. In terms of supported memory capacity, the Supermicro X12SPA-TF is on par with flagship dual-socket boards (Supermicro X12DPI-N6 and Gigabyte MD72-HB3), making it the ideal choice for RAM-hungry tasks without the need to overpay for a second processor.
- Integrated high-speed 10GbE networking: Unlike all the presented competitors (which offer only standard 2x 1Gb/s Gigabit ports), the Supermicro X12SPA-TF is equipped with a hybrid network configuration that includes an ultra-fast 10 Gigabit Ethernet port. This allows the workstation to be instantly connected to high-speed network arrays and eliminates the need to occupy a PCIe slot with a separate, expensive network card.
- Spacious E-ATX form factor: Compared to the single-socket ATX board (Gigabyte MU72-SU0), the larger E-ATX size provides significantly more physical space. This allows for the accommodation of a powerful power delivery subsystem for the stable operation of 270W TDP processors, ensures optimal spacing between the 16 memory slots, and grants convenient access to PCIe slots for installing multiple massive professional graphics cards.
- Uncompromising computing power per socket: The board guarantees 100% utilization of the potential of the highest-end 3rd Gen Intel Xeon Scalable processor models with a 270W TDP. Stable power delivery and efficient heat dissipation allow the processor to maintain maximum frequencies during prolonged rendering or mathematical calculations.
Conclusion
The Supermicro X12SPA-TF is an ultimate single-socket platform that blurs the line between workstations and heavy-duty servers. It stands head and shoulders above its single-socket competitors thanks to the gigantic amount of supported RAM (up to 4 TB across 16 slots) and the presence of a high-speed 10Gb/s network port out of the box. This motherboard is an ideal, powerful, and balanced foundation for professionals who require the extreme performance of a single flagship Intel Xeon processor and maximum scalability for working with 3D graphics, artificial intelligence, and analytics.
Product FAQ
The board features an LGA 4189 socket and is built on the specialized Intel C621A server chipset. It is designed to work with powerful 3rd Generation Intel Xeon Scalable processors (Ice Lake architecture) and guarantees the stable operation of flagship models with a Thermal Design Power (TDP) of up to 270W.
This is one of the strongest aspects of this model. The board features 16 DIMM slots, allowing you to install up to 4 TB of high-speed DDR4 server memory. Error-Correcting Code (ECC) modules (RDIMM and LRDIMM) are supported. Such a colossal capacity is more than enough to load the most massive projects and heavy databases into RAM.
The Supermicro X12SPA-TF is designed in the larger E-ATX form factor (330 x 305 mm). Due to its dimensions, it will not fit into most standard home cases. To build a workstation, you will need a spacious Full-Tower case or a server chassis that officially supports the E-ATX standard.
Yes, the platform provides a huge number of available high-speed PCIe 4.0 lanes. The board hosts four full-size x16 slots and three x8 slots. This allows you to install several powerful graphics accelerators simultaneously, making the board an ideal foundation for computing, 3D rendering, and machine learning.
Out of the box, the motherboard offers an excellent hybrid network configuration: one ultra-fast 10 Gigabit Ethernet (10GbE) port for the instant exchange of heavy files with Network Attached Storage (NAS) and one standard Gigabit port (1GbE) for connecting to the internet or a local corporate network.
No, this model is an uncompromising single-socket (1S) solution. However, support for 3rd Generation Xeon Scalable processors, which feature dozens of compute cores, allows a single board like this to deliver ultimate performance sufficient for the most demanding professionals.
Yes, the board is equipped with four M.2 slots supporting the PCIe 4.0 interface. This guarantees maximum bandwidth for the storage subsystem, completely eliminating delays when booting the operating system, caching data, and working with heavy projects.
Top-tier processors with a TDP of up to 270W generate a large amount of heat. To ensure stable system operation under load, you will need high-performance cooling (a specialized air super-cooler for workstations or a powerful liquid cooling system) with mounting hardware strictly designed for the LGA 4189 server socket.
The Supermicro X12SPA-TF is an elite foundation for top-tier workstations (High-End Desktop / Workstation). It is ideally suited for IT professionals working with artificial intelligence and neural network training (AI/ML), complex 3D modeling and animation, ultra-high-resolution video editing, as well as designing in heavy engineering software suites (CAD/CAM).
