New

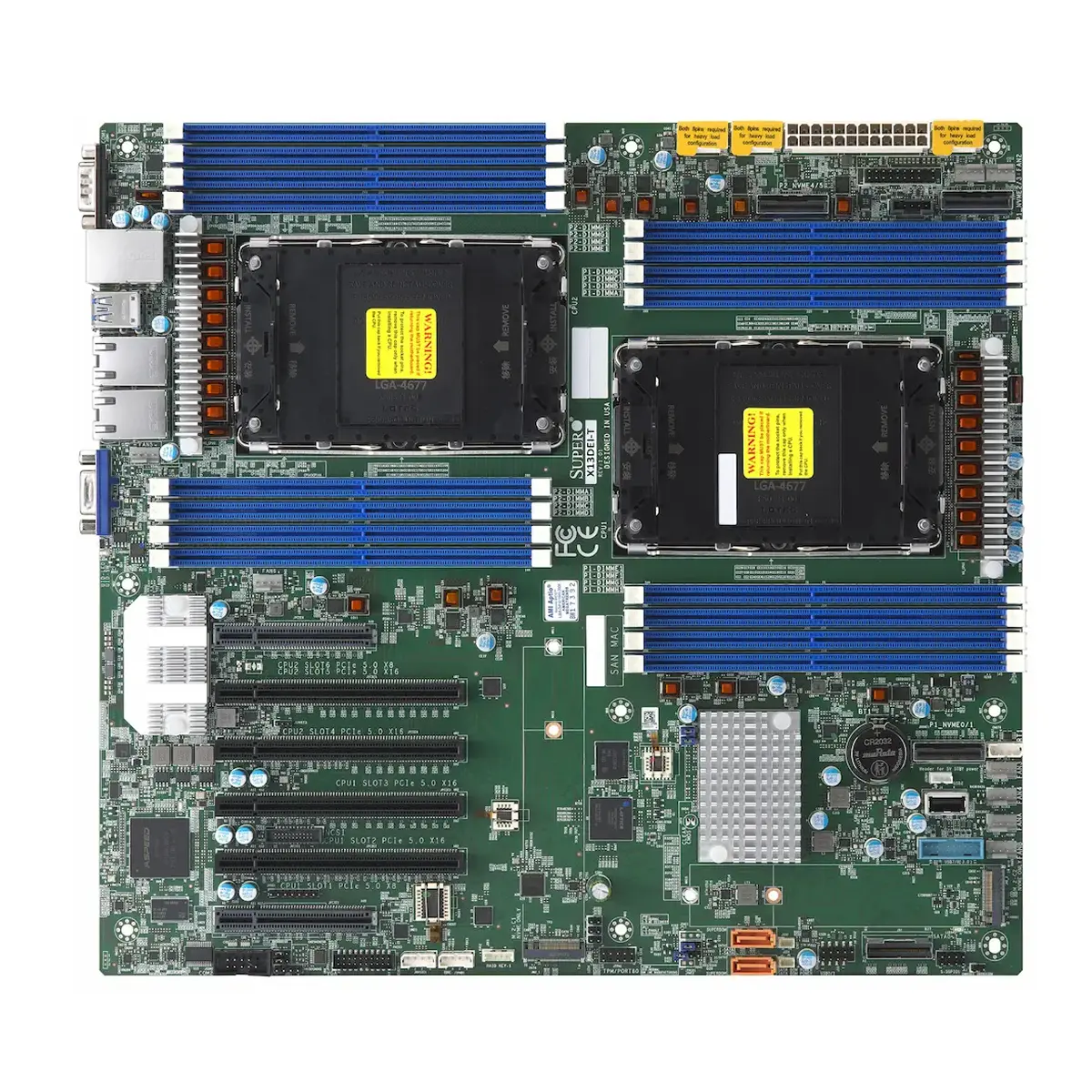

Supermicro X13DEI-T
P/N: MBD-X13DEI-T
1 245€ (inc. VAT (Spain))
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 2 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Supermicro X13DEI-T workstation motherboard with fast EU delivery and worldwide shipping. Best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Weight | 3,2 kg |
|---|---|
| Dimensions | 44 × 35 × 9 cm |
| Country of manufacture | China, Taiwan |
| Manufacturer's warranty (years) | 1 |
| Model | X13DEI-T |
| Memory type | DDR5 RDIMM |
| Maximum memory capacity | 4TB |
| Processors on a motherboard | 2 |
| Length (cm) | 44 |
| Width (cm) | 35 |
| Weight (kg) | 3.2 |
| Socket | LGA 4677 |
| Chipset | Intel C741 |
| Max Supported CPU TDP (W) | 350 |
| Number of DIMM Slots | 16 |
| Number of LAN Ports | 2 |
| Integrated LAN Controller | 2x 10Gb/s (Broadcom BCM57416) |
| Form Factor | E-ATX |
| Integrated RAID Controller | ASPEED AST2600 |
Product description
Supermicro X13DEI-T: Anchoring the Next Generation of Enterprise Computing Infrastructure
In an era defined by data intensity, the Supermicro X13DEI-T establishes itself as a foundational component for modern data centers. This E-ATX platform is not merely a circuit board; it is a sophisticated nervous system designed to orchestrate the immense capabilities of Dual Intel Xeon Scalable processors (covering both 4th and 5th Generations). Built around the industrial-strength Intel C741 logic set, it is thermally and electrically validated to sustain high-wattage CPUs (up to 350W TDP), ensuring that heavy virtualization workloads and cloud-native applications run without thermal throttling restrictions.
Breaking Bandwidth Barriers with PCIe 5.0 and DDR5
The X13DEI-T is engineered to eliminate the “von Neumann bottleneck.” It achieves this through a massive memory subsystem comprising 16 physical DIMM banks. This layout allows system architects to deploy up to 4TB of ECC DDR5 memory, operating at blistering speeds of 5600 MT/s. Such density is critical for in-memory analytic engines and large-scale database caching.
Simultaneously, the board ushers in the PCIe Gen 5.0 era, doubling the available I/O throughput compared to previous iterations. With four full-width x16 slots and two x8 slots, it offers a wide highway for next-generation peripherals, from 400GbE network interfaces to FPGA accelerators, ensuring the CPU is never starved for data.
A Hybrid Storage Architecture for Low Latency
Storage flexibility is baked into the PCB design. The motherboard distinguishes itself by integrating three MCIO headers, which deliver PCIe 5.0 x4 lanes directly to NVMe drives. This cabling solution bypasses traditional PCB trace limitations, significantly reducing signal loss and latency.
For boot operations and logging, administrators can leverage two onboard M.2 Gen5 slots. Meanwhile, bulk storage is handled by a robust SATA subsystem managed by the C741 chipset, offering 8 standard ports and 2 SuperDOM connectors for reliable, cable-free boot module installation.
Built-In High-Velocity Networking
Connectivity is often an expensive add-on, but the X13DEI-T integrates it natively. The board features a powerful Dual-Port 10GBase-T interface, driven by the enterprise-grade Broadcom BCM57416 controller. This inclusion allows for immediate deployment into high-speed iSCSI or NFS storage networks without occupying a valuable PCIe slot, optimizing both cost and expansion utility.
Comprehensive Remote Oversight
Operational continuity is secured via the ASPEED AST2600 Baseboard Management Controller (BMC). This dedicated processor provides a completely out-of-band management channel. Through a secure IPMI 2.0 interface, IT teams can perform BIOS recovery, monitor voltage telemetry, and access a KVM console remotely, effectively removing the need for physical presence in the server room.
Strategic Application
This platform is specifically tailored for:
- Virtualization Farms: Where the combination of 4TB RAM and 10GbE allows for extreme VM density.
- Hyper-Converged Clusters: Utilizing the mix of NVMe caching and SATA bulk storage.
- AI Inference: Leveraging the high-bandwidth PCIe 5.0 bus for GPU data feeding.
Why the X13DEI-T Stands Out
Verdict: The Supermicro X13DEI-T represents a “no-compromise” approach to server design. By fusing Gen5 speed, DDR5 capacity, and native 10-Gigabit networking, it provides a future-proof investment for enterprises looking to maximize performance per rack unit.
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Supermicro X13DEI-T Motherboard
The Supermicro X13DEI-T is a flagship dual-socket E-ATX server motherboard designed to unlock the full potential of the latest 4th and 5th Generation Intel Xeon Scalable processors based on the LGA 4677 socket. The platform is built on the specialized Intel C741 server chipset and offers extreme compute density, a colossal amount of supported RAM, and ultra-fast built-in network interfaces for operating under maximum loads in modern data centers.
The motherboard is designed and hardware-optimized for the following tasks:
- High-Performance Computing (HPC) and AI: The presence of two sockets provides extreme performance in parallel computing, and a massive array of available PCIe lanes allows for the direct connection of multiple graphics accelerators.
- Large-scale enterprise virtualization: Support for up to 4 TB of DDR5 RAM and two flagship multi-core processors allows for deploying hundreds of isolated virtual machines on a single physical server.
- Software-Defined Storage (SDS) and networking: Built-in 10GbE network ports are ideal for the instant synchronization of distributed storage and rapid data movement within a cluster.
- Analytics and In-Memory Databases: The integration of advanced DDR5 RDIMM memory ensures the highest bandwidth and minimal latency during continuous access to datasets residing directly in RAM.
Comparative Table of Technical Specifications
Below is a comparison of the Supermicro X13DEI-T with its closest competitors on the LGA 4677 platform.
| Model | Form Factor | Max Processors | Chipset | Memory Type | Max RAM* | LAN Ports | TDP (W) |
|---|---|---|---|---|---|---|---|
| Supermicro X13DEI-T | E-ATX | 2 | Intel C741 | 16x DDR5 RDIMM | 4TB | 2x 10Gb/s | 350 |
| Gigabyte MS73-HB1 | E-ATX | 2 | Intel C741 | 16x DDR5 RDIMM | 4TB | 2x 1Gb/s | 350 |
| Supermicro X13SEI-F | E-ATX | 1 | Intel C741 | 8x DDR5 RDIMM | 2TB | 2x 1Gb/s | 350 |
| Gigabyte MS03-CE0 | ATX | 1 | Intel C741 | 8x DDR5 RDIMM | 2TB | 2x 1Gb/s | 350 |
*RAM — Random Access Memory.
Analysis of Supermicro X13DEI-T Strengths
Based on the technical specifications, we can highlight the key advantages of the Supermicro X13DEI-T compared to competing solutions on the LGA 4677 socket:
- Integrated high-speed 10GbE networking: This is the most important and undeniable advantage of the Supermicro X13DEI-T over its direct dual-socket competitor, the Gigabyte MS73-HB1. The presence of two 10 Gigabit Ethernet ports allows the server to be instantly integrated into high-speed data center backbones. In the case of Gigabyte, the user will have to occupy PCIe slots with additional network cards, which reduces overall system flexibility.
- Doubled computing power: Unlike single-socket models (Supermicro X13SEI-F and Gigabyte MS03-CE0), the X13DEI-T motherboard supports the installation of two processors simultaneously with a TDP of up to 350W each. This doubles the number of compute cores and bus bandwidth, which is vital for heavy cluster workloads and multi-threaded computing.
- Extreme supported memory capacity: Support for up to 4 TB of high-speed DDR5 RDIMM memory puts the board in the absolute lead for “in-memory” database tasks. Single-socket counterparts are hardware-limited to half the RAM capacity (2 TB), making them less suitable for ultra-large projects.
- Reliable enterprise architecture: The use of the Intel C741 logic set in conjunction with the E-ATX form factor ensures excellent airflow distribution to dissipate a total of 700W of heat from the two processors. The board is designed with a focus on supreme fault tolerance, predictable behavior under extreme load, and uninterrupted operation of the server infrastructure.
Conclusion
The Supermicro X13DEI-T is an uncompromising dual-socket platform that represents the pinnacle of evolution for the LGA 4677 socket. It stands head and shoulders above the competition due to its perfect combination of ultimate compute density (two 350W processors), a gigantic 4 TB RAM capacity, and, most importantly, the presence of integrated high-speed 10GbE network ports. This motherboard is the best foundation for building the most powerful, ready-to-work virtualization and data processing nodes, where the highest network exchange speed and processor performance are critical for the infrastructure.
Product FAQ
This model is equipped with two LGA 4677 sockets and is designed for 4th and 5th Generation Intel Xeon Scalable server processors. Thanks to a robust power delivery subsystem, the board can stably operate with flagship multi-core processors featuring a Thermal Design Power (TDP) of up to 350W per socket.
The motherboard features 16 DIMM slots (8 slots per processor). The maximum supported capacity is an impressive 4 TB. The system supports high-speed DDR5 RDIMM server memory, providing colossal bandwidth for database workloads.
One of the key features of the Supermicro X13DEI-T is the presence of two integrated 10 Gigabit Ethernet (10GbE RJ45) ports. This allows the server to be immediately connected to a high-speed backbone network without the need to purchase and install additional network adapters in the PCIe slots.
Yes, the system will boot and operate with only one processor installed (in the primary socket). However, in this case, you will only have access to half of the RAM slots (8 slots) and only the PCIe lanes hardware-linked to the active processor. To unlock the board’s full potential, the installation of two CPUs is required.
No, the motherboard is designed in the larger E-ATX server form factor. Due to its dimensions (305 x 330 mm), installation will require a specialized and spacious server chassis (Rackmount or Tower) that is officially compatible with the E-ATX format.
Yes, the LGA 4677 platform provides full support for the advanced PCI Express 5.0 bus standard. This doubles the bandwidth compared to PCIe 4.0, which is critical for connecting ultra-fast NVMe drives and modern compute graphics accelerators (GPUs) for AI and calculations.
Yes, as is standard for enterprise-class solutions, the board is equipped with a built-in Baseboard Management Controller (BMC) based on the ASPEED AST2600 chip and features a separate, dedicated IPMI LAN port. This allows IT administrators to remotely manage power, update the BIOS, monitor sensor readings, and use a KVM console.
Given the support for two powerful processors with a TDP of up to 350W each, the system requires highly efficient server-grade cooling. You must use heatsinks specifically certified for the LGA 4677 socket, and the server chassis itself must be equipped with powerful, high-RPM fans to generate a strong, direct-through airflow.
The Supermicro X13DEI-T is an uncompromising solution for the most resource-intensive enterprise tasks. It is ideally suited for building high-performance computing (HPC) cluster nodes, large-scale enterprise virtualization (VDI), working with large in-memory databases, and deploying software-defined storage (SDS).
