Supermicro X13SAE-F

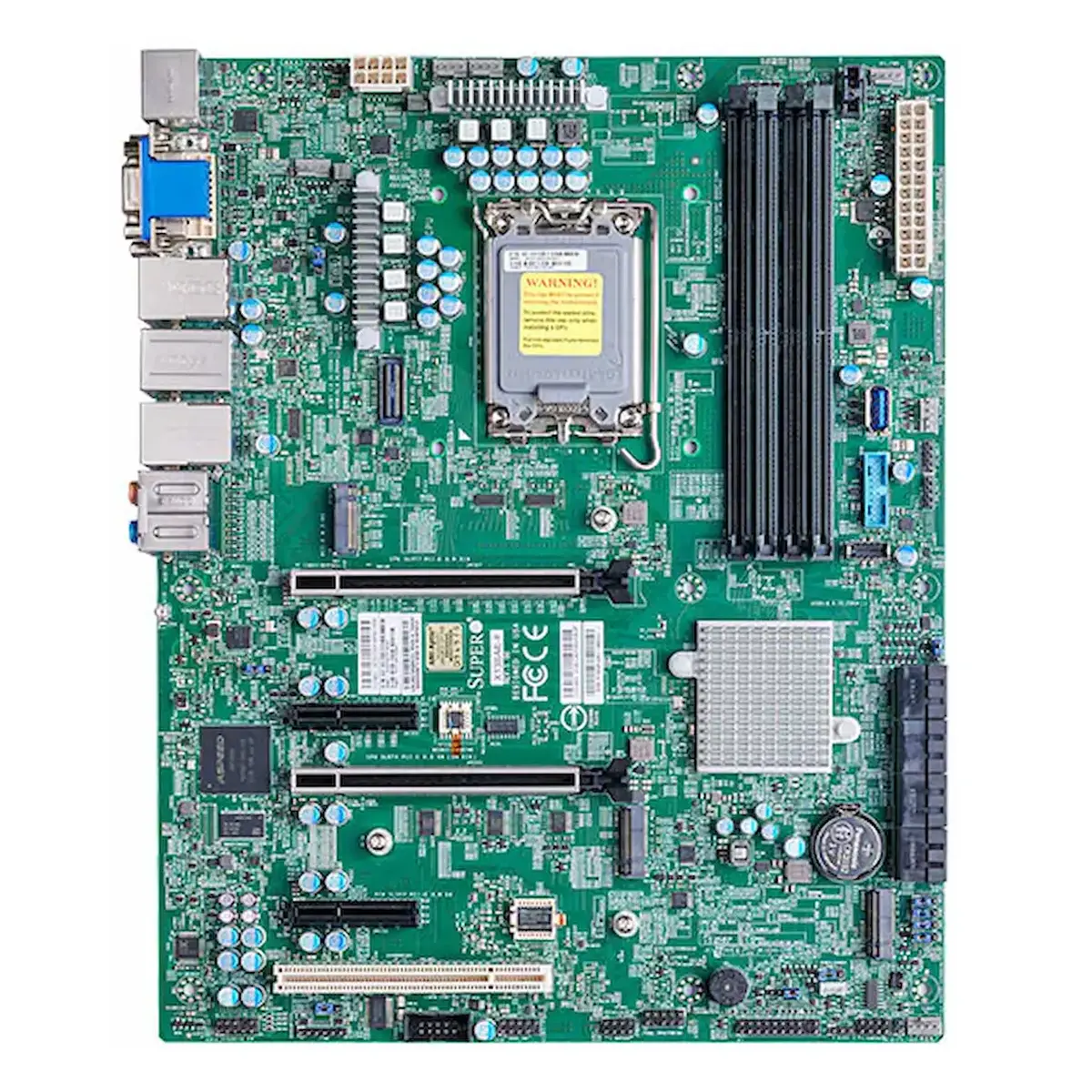

Supermicro X13SAE-F: The W680 Workstation Motherboard with Server DNA

The Supermicro X13SAE-F represents the perfect fusion of desktop performance and server-grade reliability. Built on the standard ATX form factor (12″ × 9.6″) and utilizing the Intel W680 chipset (LGA1700), this motherboard is engineered to unlock the professional potential of 12th, 13th, and 14th Gen Intel Core processors. It is a dedicated solution for engineers and system administrators who require the clock speeds of modern consumer CPUs combined with the stability of ECC memory and remote management capabilities.

Enterprise Stability on a Desktop Platform

Unlike standard consumer boards, the X13SAE-F is validated for 24/7 continuous operation.

• Chipset: The Intel W680 logic offers workstation-specific features, including Intel vPro and ECC support on compatible Core i5/i7/i9 CPUs.
• Memory Architecture: It features 4 DIMM slots supporting up to 128GB of DDR5 memory. Crucially, it supports ECC (Error Correcting Code) UDIMMs, protecting your system against data corruption during long render cycles or complex calculations.
• Performance: Supports memory speeds up to 4400/5600 MT/s (depending on configuration), ensuring high bandwidth for bandwidth-hungry applications.

Future-Ready I/O and Scalability

The board is designed to host modern accelerators and storage arrays without bottlenecks:

• PCIe 5.0 Expansion: Features a reinforced PCIe 5.0 x16 slot for next-generation GPUs, plus a PCIe 4.0 x4 slot for additional controllers.
• High-Speed Storage: Equipped with two PCIe 4.0 x4 M.2 slots (2280 form factor) for ultra-fast NVMe OS booting.
• Legacy Connectivity: Includes 8 x SATA 6Gb/s ports (RAID 0, 1, 5, 10 support) for massive local storage, alongside USB 3.2 Gen2 for fast peripheral connectivity.

True Out-of-Band Remote Management

The “F” in the model name stands for “IPMI,” setting this board apart from consumer alternatives.

• BMC Controller: Integrated ASPEED AST2600 BMC provides full remote control capabilities.
• IPMI 2.0 & KVM: Allows administrators to manage the BIOS, update firmware, and monitor system health remotely (KVM-over-LAN) via a dedicated LAN port.
• Integration: Fully compatible with Supermicro Server Manager (SSM) and SuperDoctor® 5 for fleet management.

Ideal Deployment Scenarios

• CAD/CAM Workstations: For designers needing high single-core frequency (Intel Core) with the safety net of ECC memory.
• Edge Computing: Reliable performance in compact environments where remote access is critical.
• SMB Servers: Perfect for file servers, domain controllers, or virtualization nodes in small offices.
• Medical & Industrial PC: Long-life components suitable for embedded applications.

Why Professionals Choose the X13SAE-F

• Hybrid Performance: Combines Intel Core speed with Server-grade stability.
• Dual 2.5GbE LAN: Two Intel Ethernet ports provide redundancy and high-speed networking.
• Zero-Touch Maintenance: IPMI allows for headless operation (no monitor/keyboard required).
• PCIe Gen5 Ready: Prepared for the latest graphics cards and add-on cards.

Summary

The Supermicro X13SAE-F is the gold standard for W680 motherboards. It eliminates the compromise between consumer speed and enterprise reliability. By offering DDR5 ECC support, PCIe 5.0, and full IPMI remote management, it serves as the ultimate foundation for professional workstations and entry-level servers that demand zero downtime.
