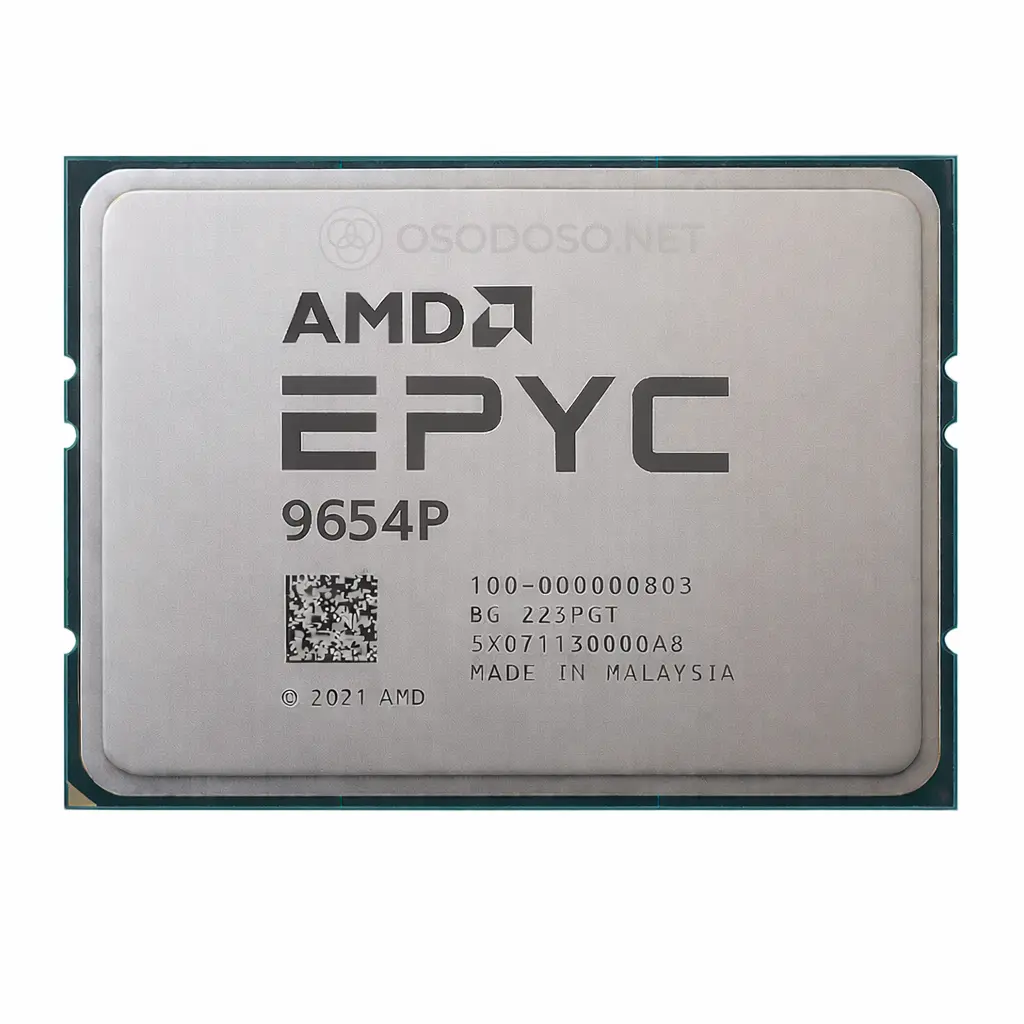

AMD EPYC 9654P 96c/192t 2.4GHz-3.7GHz 360W (100-000000803)

AMD EPYC 9654P Server CPU

Positioning within the EPYC 9004 lineup

AMD EPYC 9654P is a Zen 4–based EPYC processor engineered for maximum core density in single-socket servers on the SP5 platform. As a P-series model, it delivers the full EPYC memory and I/O capabilities in a one-socket configuration, making it ideal for scale-out infrastructures built from powerful, uniform compute nodes. Within the EPYC 9004 “Genoa” family, the 9654P represents one of the highest core-count options available for 1P deployments.

Core configuration and execution characteristics

The processor provides 96 cores and 192 threads, operating at a 2.4 GHz base frequency with boost clocks up to 3.7 GHz. This configuration is optimized for sustained, massively parallel workloads that maintain high utilization across all cores. EPYC 9654P excels in environments where overall throughput and consolidation density matter more than peak single-thread performance.

In practice, this makes the processor well suited for large virtualization hosts, container platforms with extreme concurrency, and cloud infrastructures designed to maximize compute per rack unit.

Cache architecture and workload behavior

EPYC 9654P includes 384 MB of L3 cache, providing a substantial shared cache to support its very high core count. This cache capacity helps reduce contention and improves consistency in multi-tenant environments, especially when many workloads compete for shared resources.

While not cache-specialized like X-series processors, the cache-to-core balance is tuned for throughput-oriented workloads that rely primarily on parallelism and memory bandwidth.

Memory subsystem and bandwidth capabilities

The processor supports DDR5-4800 memory across 12 memory channels, delivering exceptional aggregate memory bandwidth from a single socket. This bandwidth is critical for feeding 96 cores under sustained load and prevents memory from becoming a limiting factor in data-intensive and highly parallel applications.

Proper DIMM population across all channels is essential to achieve predictable latency and full bandwidth utilization in production environments.

I/O capabilities and platform integration

EPYC 9654P supports PCI Express 5.0 with up to 128 lanes available from a single socket. This enables dense NVMe storage, high-speed networking, and accelerator connectivity without external PCIe switches. For infrastructure architects, this simplifies system design while supporting flexible, high-performance configurations.

Power envelope and deployment considerations

EPYC 9654P is rated at 360 W TDP, reflecting its extreme core density and platform capabilities. Deployment requires enterprise-grade cooling and server chassis designed for sustained high power density. In properly engineered systems, the processor delivers stable, predictable performance under continuous load, making it suitable for always-on production environments.

Ideal use cases and selection guidance

EPYC 9654P is best suited for organizations seeking maximum compute density in a single socket. Typical use cases include large-scale virtualization and private cloud platforms, container orchestration clusters with extreme concurrency, high-density enterprise back-end systems, and scale-out cloud infrastructure focused on consolidation efficiency. For workloads that depend heavily on per-core frequency or cache-resident datasets, other EPYC variants may be more appropriate. EPYC 9654P should be selected when the primary goal is to maximize total throughput and consolidation per node on a modern Zen 4 platform.
