Intel Xeon Gold 6248 20c/40t 2.5GHz-3.9GHz 150W (CD8069504194301)
P/N: CD8069504194301
183€ (excl. TAX)
220 € RRP en Intel.com
The recommended retail price provided by the product’s manufacturer.
Delivery is made within 3-7 days
This is an estimated timeframe. Delivery times may vary depending on logistics and stock availability.
Warranty 1 year
The product is covered by the manufacturer’s standard warranty.
In stock
Guaranteed Safe Checkout:
Bussines pricing from
170€
This price is available to registered corporate/business customers. To access it, submit a request on the website to receive a discounted invoice.
Business customers: submit a request to get an ongoing extra 3–7% discount.
Intel Xeon Gold 6248 processor with fast EU delivery and worldwide shipping. The best price in the European Union. Includes official warranty.
Expert support On-line
Our specialist will help you choose the right server components and ensure full compatibility with your system.
Technical Specifications Product
| Dimensions | 17 × 17 × 10 cm |
|---|---|
| Country of manufacture | China, USA |
| Manufacturer's warranty (years) | 1 |
| Series | Xeon Gold |
| Number of cores | 20 |
| Number of threads | 40 |
| Clock frequency (GHz) | 2.5 |
| Cache L3 (MB) | 27,5 |
| Process technology (nm) | 14 |
| Maximum Turbo Frequency (GHz) | 3.9 |
| Memory type | DDR4 |
| Maximum memory channels | 6 |
| Maximum memory frequency (MHz) | 2933 |
| Maximum memory capacity | 1TB |
| Heat dissipation TDP (W) | 150 |
| PCI Express controller | PCIE 3.0 |
| Number of PCI Express lanes | 48 |
| Processors on a motherboard | 4 |
| Length (cm) | 17 |
| Width (cm) | 17 |
| SKU | SRF90 |
| Architecture | Cascade Lake |
| Socket | LGA 3647 |
Product description

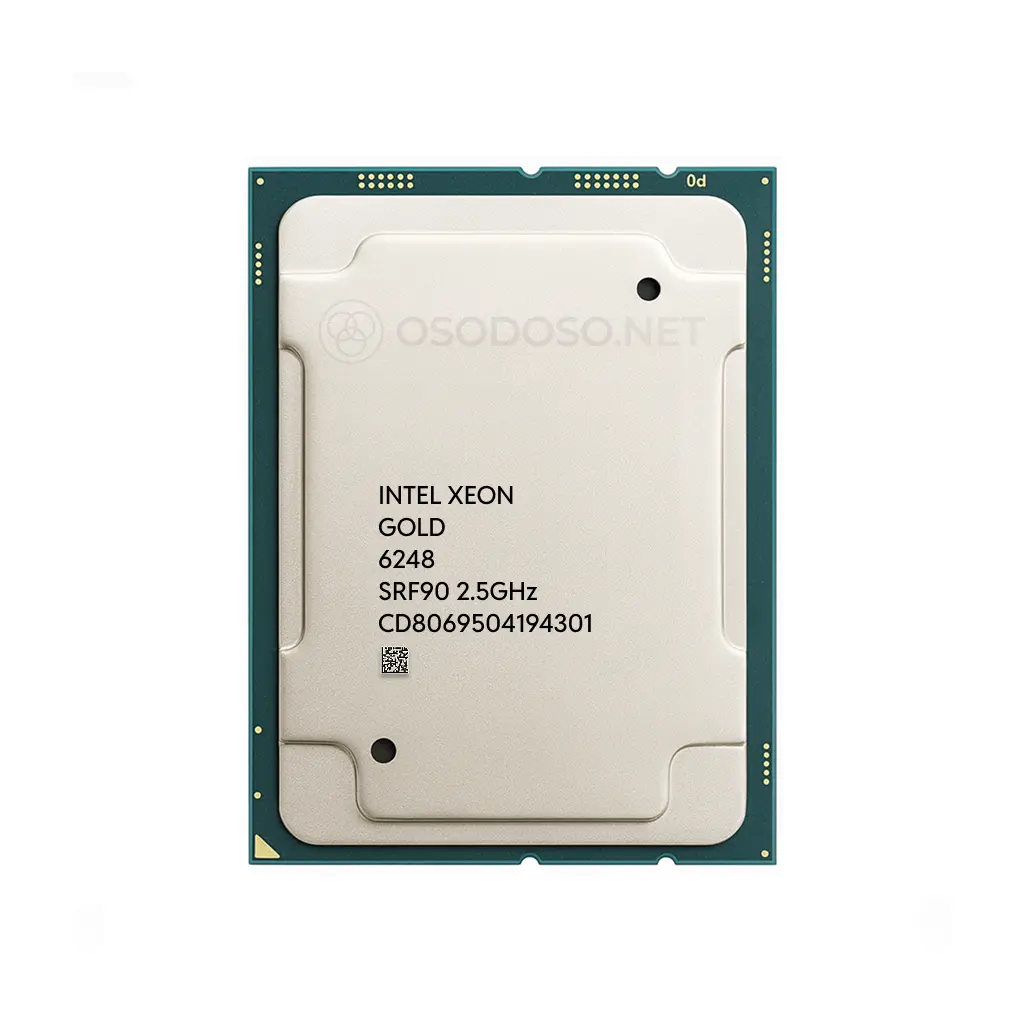

Intel Xeon Gold 6248 Processor
The Intel Xeon Gold 6248 processor, part of the Cascade Lake architecture, is engineered to meet the demanding workloads of modern data centers and enterprise environments. This powerful processor features a robust configuration with 20 cores and 40 threads, allowing for exceptional multi-threaded performance that is crucial for applications requiring simultaneous processing capabilities. The Xeon Gold 6248 operates at a base frequency of 2.50 GHz, ensuring reliable performance under heavy loads, while its turbo frequency can reach up to 3.90 GHz, effectively boosting performance for single-threaded tasks when needed.
Designed with a thermal design power (TDP) of 150 watts, the Xeon Gold 6248 strikes a balance between performance and efficiency, making it an ideal choice for energy-conscious organizations. The processor is equipped with an impressive 27.5 MB of L3 cache, facilitating rapid access to frequently used data and enhancing overall system responsiveness. This large cache size is particularly beneficial for data-intensive applications, enabling faster data retrieval and improved application performance.
Memory support is another critical aspect of the Intel Xeon Gold 6248, which supports DDR4 memory, providing a high bandwidth that is essential for handling large datasets and complex computations. With support for up to 1.5 TB of memory across six channels, this processor is designed to scale with the evolving needs of businesses, ensuring that organizations can expand their server capabilities without compromising performance.
The architecture of the Xeon Gold 6248 incorporates advanced features such as Intel Turbo Boost Technology, Intel Hyper-Threading Technology, and enhanced security capabilities, making it a reliable choice for mission-critical applications. Its design ensures that businesses can count on consistent performance and stability, essential for maintaining uptime in server environments. Moreover, the processor is built to support virtualization and can efficiently handle workloads that require high availability and scalability.
At our online store, we offer fast delivery across Europe and global shipping options to ensure that your business can quickly access the Intel Xeon Gold 6248 processor. Additionally, all our products come with an official warranty of 1 to 3 years, providing you with confidence in your purchase. Enhance your server performance and reliability today by investing in the Intel Xeon Gold 6248. For inquiries or to place an order, please contact us.
Product reviews
0
50
40
30
20
10
Only logged in customers who have purchased this product may leave a review.
Product Berchmark
Overview and Analysis of the Intel Xeon Gold 6248 Processor
Based on technical data, a comparison was conducted between the Intel Xeon Gold 6248 processor and its 9 closest competitors from the Intel Xeon Gold family. The analysis focuses exclusively on hardware specifications and performance metrics.
Comparative Table of Technical Specifications
| Processor Model | Cores / Threads | Base Frequency (GHz) | Turbo Boost (GHz) | L3 Cache (MB) | TDP (W) |
|---|---|---|---|---|---|
| Intel Xeon Gold 6248 | 20 / 40 | 2.5 | 3.9 | 27.5 | 150 |
| Intel Xeon Gold 6254 | 18 / 36 | 3.1 | 4 | 24.75 | 200 |
| Intel Xeon Gold 6242R | 20 / 40 | 3.1 | 4.1 | 35.75 | 205 |
| Intel Xeon Gold 6240R | 24 / 48 | 2.4 | 4 | 35.75 | 165 |
| Intel Xeon Gold 6238R | 28 / 56 | 2.2 | 4 | 38.5 | 165 |
| Intel Xeon Gold 6230R | 26 / 52 | 2.1 | 4 | 35.75 | 150 |
| Intel Xeon Gold 6226R | 16 / 32 | 2.9 | 3.9 | 22 | 150 |
| Intel Xeon Gold 6246 | 12 / 24 | 3.3 | 4.2 | 24.75 | 165 |
| Intel Xeon Gold 6244 | 8 / 16 | 3.6 | 4.4 | 24.75 | 150 |
| Intel Xeon Gold 5218R | 20 / 40 | 2.1 | 4 | 27.5 | 125 |
Analysis of Technical Specifications of the Intel Xeon Gold 6248 Processor
The Intel Xeon Gold 6248 demonstrates a balanced set of characteristics that distinguishes it from competitors in this segment:
- Optimal core-to-power ratio: The processor offers 20 physical cores with a Thermal Design Power (TDP) of 150 W. For comparison, the Intel Xeon Gold 6242R model with a similar number of cores has a TDP of 205 W, which is 36% higher. This makes the 6248 a more preferable choice for infrastructure with heat dissipation constraints.
- Advantage in base frequency: When compared with multi-core alternatives such as the Intel Xeon Gold 6230R (26 cores) and 6238R (28 cores), the 6248 model wins due to a higher base frequency — 2.5 GHz versus 2.1 GHz and 2.2 GHz respectively. This ensures higher per-core performance in tasks that do not constantly use turbo mode.
- Performance relative to lower-tier models: Compared to the Intel Xeon Gold 5218R, which also has 20 cores, the 6248 offers a significantly higher base frequency (2.5 GHz versus 2.1 GHz), providing an increase in computing power within the same architecture.
Conclusion
The Intel Xeon Gold 6248 is an effective solution for virtualization tasks and high-load computing where high core density is required without extreme power consumption. It occupies a “golden mean”, offering performance close to top models with the “R” index, but maintaining a standard thermal package of 150 W, which simplifies integration into existing server systems.
Product FAQ
This processor is optimized for demanding enterprise workloads. With 20 cores and 40 threads, it is ideal for virtualization environments, large database processing, cloud computing, and hybrid server infrastructures where high compute density and reliability are required.
The Intel Xeon Gold 6248 supports DDR4 memory with speeds up to 2933 MHz. The processor features 6 memory channels and supports Error Correction Code (ECC) modules. The maximum memory capacity depends on the server configuration, but the architecture supports working with terabytes of data, including support for Intel Optane DC Persistent Memory modules.
Yes, the Intel Xeon Gold 6248 supports scalability up to 4 sockets (4S). This means you can install up to four of these processors on a single compatible motherboard, achieving a total of 80 physical cores and 160 threads for extreme performance.
Installing this processor requires a motherboard with the FCLGA3647 (Socket P) socket. Ensure your server platform or motherboard is based on the Intel C620 series chipset (e.g., C621) to ensure full compatibility.
The Thermal Design Power (TDP) of this model is 150W. Stable operation requires an effective server cooling system (active or passive, depending on the chassis) designed to dissipate this power and compatible with the LGA3647 mounting.
Yes, the processor belongs to the Cascade Lake family and supports Intel Deep Learning Boost (Intel DL Boost) technology. This provides significant acceleration for deep learning and neural network inference tasks compared to previous generations.
The base clock frequency of the processor is 2.5 GHz. Thanks to Intel Turbo Boost 2.0 technology, the frequency can dynamically increase up to 3.9 GHz depending on the workload type and thermal conditions, providing additional performance exactly when it is needed.
This is one of the best solutions for virtualization in its class. Support for Intel VT-x and VT-d technologies, combined with a high core count and 27.5 MB of L3 cache, allows for deploying a large number of virtual machines on a single node without performance loss (the “noisy neighbor” effect is minimized).
The Intel Xeon Gold 6248 is equipped with two AVX-512 (Advanced Vector Extensions) units. This significantly accelerates vector calculations, which is critical for scientific modeling, financial analytics, 3D rendering, and signal processing tasks.
