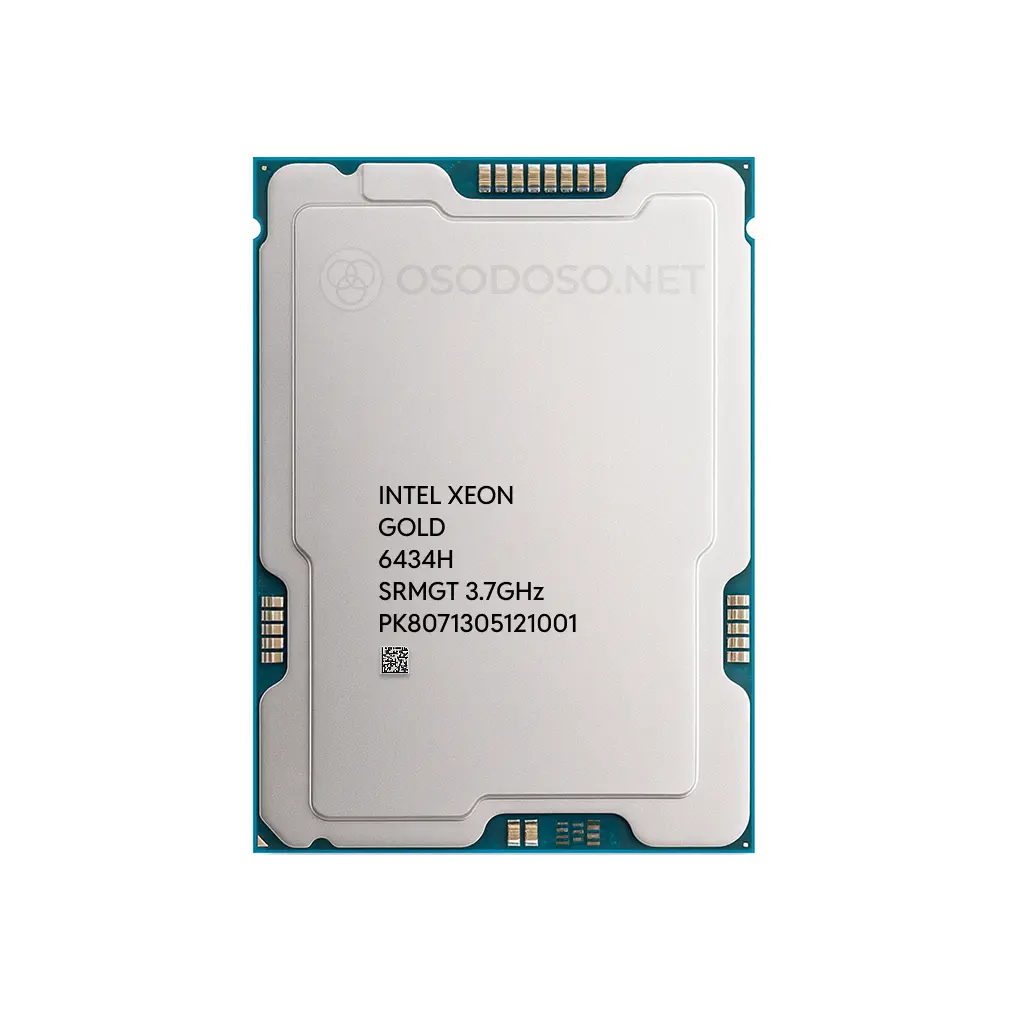

Intel Xeon Gold 6434H 8c/16t 3.7GHz-4.1GHz 195W (PK8071305121001)

Intel Xeon Gold 6434H — High-Frequency Sapphire Rapids CPU for Low-Latency Enterprise Workloads

The Intel Xeon Gold 6434H is a high-frequency Sapphire Rapids processor designed for environments where low latency and strong per-core performance are more important than raw core count. With 8 cores and 16 threads running at a 3.7 GHz base clock and boosting up to 4.1 GHz, it is well suited for trading platforms, API gateways, control-plane services, orchestration layers and compact virtualization hosts.

Unlike high-density CPUs that focus primarily on maximum thread counts, the Xeon Gold 6434H is optimized for fast response and consistent single-thread behavior. This makes it an excellent choice for systems with strict p95 and p99 latency targets, such as authentication backends, billing engines, real-time web services, telecom signaling or industrial control applications.

The Sapphire Rapids architecture delivers higher IPC than previous Xeon generations through an improved front end, wider execution resources, refined branch prediction and more effective memory prefetching. Existing Java, .NET, C++ and Go workloads typically benefit from smoother latency curves and better responsiveness under mixed, real-world traffic.

An eight-channel DDR5 memory controller, operating at up to 4400–4800 MT/s, provides significantly higher bandwidth and improved bank-level parallelism compared to DDR4. This helps under heavy concurrency, when many threads access shared in-memory data structures such as caches, routing tables, order books, session stores or queues. Even with a modest core count, the processor can keep all cores well fed without becoming memory-bound.

Each core is equipped with 2 MB of L2 cache, and the CPU includes 22.5 MB of shared L3 cache. This cache hierarchy is ideal for compact but frequently accessed working sets, including in-memory indices, pricing and rules engines, fraud detection logic and session state. Keeping these structures close to the cores reduces reliance on main memory and supports predictable response times during bursts of traffic.

The Xeon Gold 6434H also provides 80 lanes of PCI Express 5.0, allowing system builders to combine high-speed NVMe storage, modern 25/100G network adapters and selected accelerator cards, such as SmartNICs or DPUs. PCIe 5.0 bandwidth prevents storage and networking traffic from becoming a bottleneck once CPU and memory resources have been modernized.

With a 195 W TDP, the processor is tuned for sustained high-frequency operation in 1U and 2U servers. It fits scenarios where a smaller number of low-latency nodes is preferable to very large, high-core-count configurations, especially in finance, telecom, SaaS platforms and industrial automation.

For organizations refreshing infrastructure from older Xeon generations, the Intel Xeon Gold 6434H offers a substantial uplift in single-thread performance, memory bandwidth and I/O capability. It is an excellent choice for latency-sensitive enterprise systems, control planes, trading and messaging backends, API-heavy microservice platforms and compact virtualization hosts.
