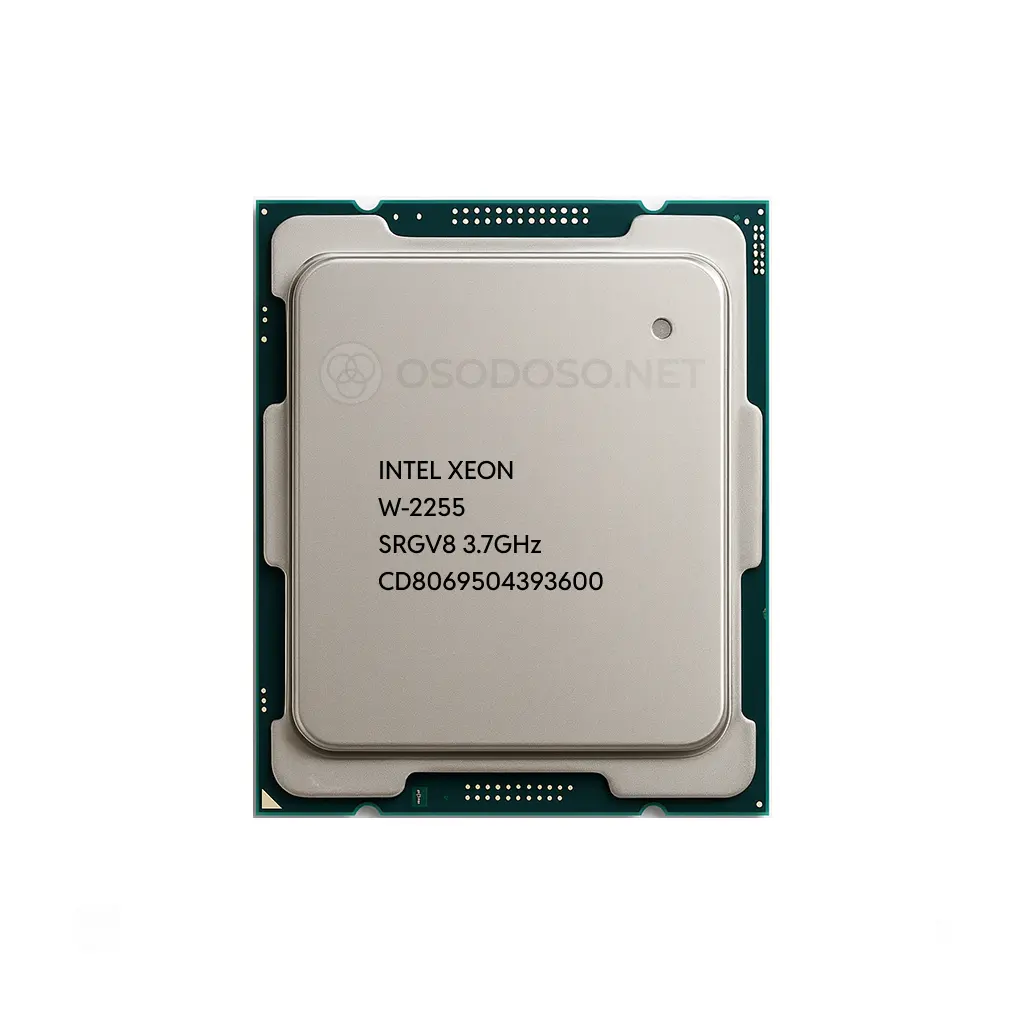

Intel Xeon W-2255 10c/20t 3.7GHz-4.5GHz 165W (CD8069504393600)

Intel Xeon W-2255: Workstation CPU for Mixed Single-Thread and Multi-Thread Workloads

The Intel Xeon W-2255 is a 10-core, 20-thread workstation processor from the Xeon W-2200 family (Cascade Lake-W), targeted at professional creators, engineers and technical users who need a validated, ECC-capable platform rather than a consumer desktop CPU. It is built on the 14 nm process, runs at a 3.70 GHz base frequency with up to 4.50 GHz Turbo Boost 2.0 and up to 4.70 GHz with Turbo Boost Max 3.0 on the best core, and features 19.25 MB of shared L3 cache with a 165 W TDP.

Platform and memory capabilities

Unlike mainstream desktop processors, the Xeon W-2255 is explicitly positioned for the workstation segment. It uses the LGA2066 socket and supports up to 1 TB of DDR4 ECC memory over four channels with official support up to DDR4-2933, giving it significantly higher maximum capacity and memory bandwidth than most desktop platforms.

For workloads such as complex CAD/CAM assemblies, 3D scenes with high-resolution textures, scientific and engineering simulations, medical imaging or radiology viewers, large, stable memory configurations are often more important than squeezing out a few extra benchmark points. This is why OEMs ship the W-2255 in systems with large ECC DDR4 configurations for professional use.

The processor exposes 48 lanes of PCIe 3.0, which is important for many professional environments using multiple GPUs, high-speed storage, capture cards or specialist PCIe cards such as SDI, data acquisition or FPGA solutions.

Performance profile and where it fits

Intel positions the Xeon W-2200 line as a platform for professional creators doing VFX, 3D rendering, complex CAD, data science and AI development. For the W-2255 specifically, the combination of 10 cores / 20 threads and relatively high clocks makes it a middle-ground option: enough cores for multi-threaded render engines, encoders and simulation tools, and strong single-thread performance for interactive work in CAD, DCC and NLE timelines.

Typical real-world use cases where the W-2255 makes sense include engineering workstations for parametric CAD and FEA pre/post, content creation with 3D modeling and rendering, compositing and video work with heavy exports, medical and imaging systems that require ECC memory, and enterprise or edge workstations where 24/7 duty cycle and platform validation matter more than chasing the newest consumer-generation CPU.

Comparison to alternatives

Within Intel’s own stack, compared to Core i9 desktop parts of the same era, the W-2255 trades some consumer-oriented optimization for ECC support, a higher memory ceiling, more PCIe lanes and workstation validation. Versus higher Xeon W models such as the W-2295 with 18 cores and 36 threads, the W-2255 offers higher base clock per core and lower core count, which can be preferable when workloads are partly bound by single-thread performance or when software licensing models charge per core.

This positioning makes the W-2255 attractive in scenarios where software licenses are per-core or per-socket, interactive responsiveness matters as much as throughput, and where budget or power and cooling constraints make 18-core options less appealing.

Power, thermals and integration

At 165 W TDP, the Xeon W-2255 requires a serious cooling solution and a workstation chassis designed for sustained high load. OEM systems pair it with robust VRMs, high-static-pressure fans and server-grade airflow layouts for continuous operation under heavy workloads.

For system builders, practical considerations include choosing a workstation-class LGA2066 motherboard with validated ECC support and enough PCIe slots, using cooling designed for continuous 165 W loads and configuring quad-channel memory symmetrically to fully utilize available memory bandwidth.

Who should consider Xeon W-2255 today

Although newer platforms such as Sapphire Rapids-WS or Ryzen Threadripper Pro deliver higher absolute performance, the Xeon W-2255 remains relevant where existing infrastructures are based on LGA2066 workstations and upgrades are done by swapping CPUs instead of rebuilding the platform, where the requirement is stable, validated hardware with ECC and ISV certifications, and where workloads are a mix of interactive, single-thread-sensitive tasks and moderate multi-threaded processing rather than extreme HPC or massive offline rendering.

In that context, the Intel Xeon W-2255 is best seen as a mature, dependable workstation CPU with a well-understood performance profile, solid multi-thread capability, strong single-core behavior and a platform built around ECC memory, expanded PCIe connectivity and long-term reliability.
