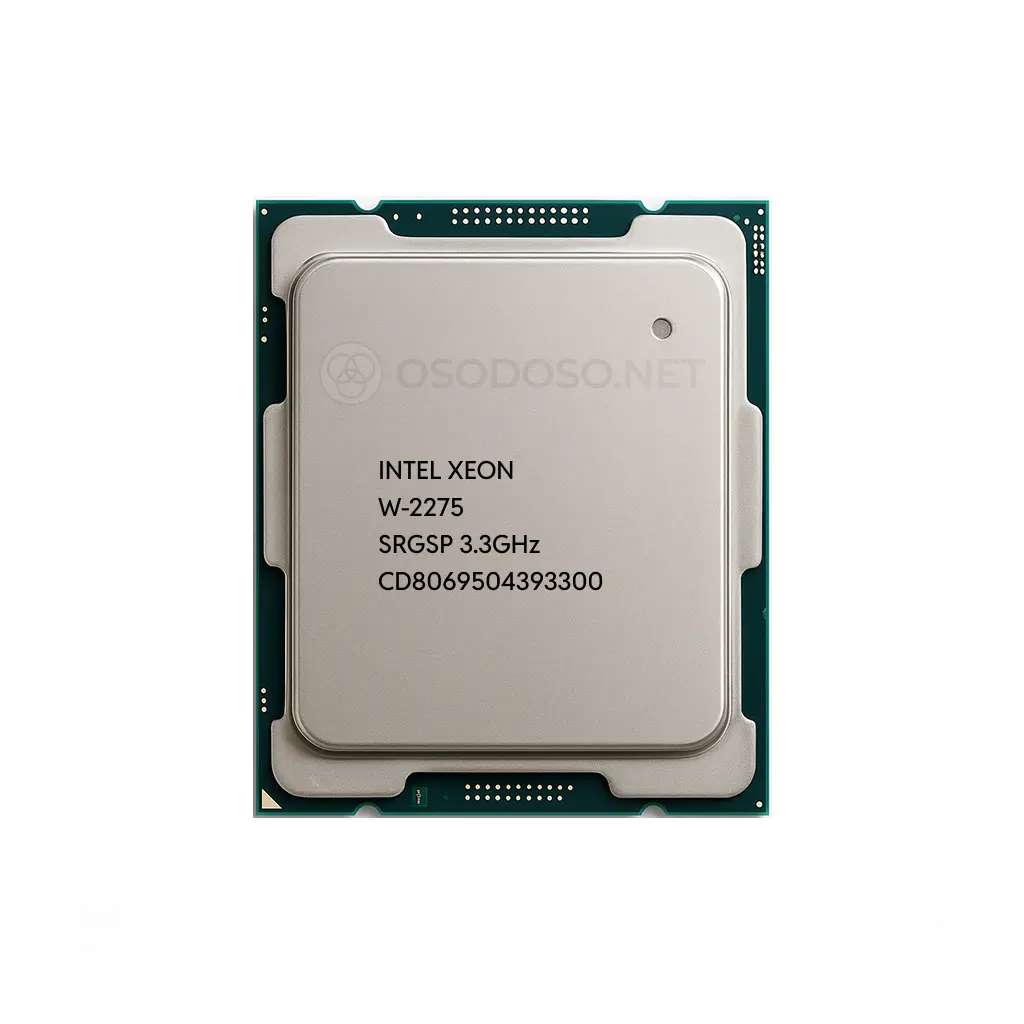

Intel Xeon W-2275 14c/28t 3.3GHz-4.6GHz 165W (CD8069504393300)

Intel Xeon W-2275 — 14-Core Cascade Lake Workstation CPU for CAD, Rendering, and Virtualization

The Intel Xeon W-2275 is a single-socket workstation processor designed for professional applications that benefit from both strong per-core speed and reliable multi-thread throughput. With 14 cores and 28 threads, a 3.30 GHz base clock, and turbo frequencies reaching 4.60 GHz (with Intel Turbo Boost Max 3.0 up to 4.80 GHz on favored cores), it fits well into engineering workstations, content-creation rigs, and on-prem virtual lab machines where latency and interactive responsiveness still matter.

A key strength of this model is its balance between core count and frequency. In many CAD/CAE and DCC pipelines, the workflow alternates between lightly threaded steps (viewport interaction, model preparation, compilation tasks, certain simulation pre-steps) and heavily parallel phases (final rendering, baking, batch processing, encoding, large builds). The W-2275 is built to stay competent in both. Its 19.25 MB cache helps reduce stalls in mixed workloads, and the platform targets sustained operation rather than consumer “burst” behavior.

Memory support is tailored for workstation realities: four DDR4-2933 channels and up to 1 TB capacity allow large assemblies, complex scenes, and multiple concurrent VMs without immediately hitting RAM ceilings. The quad-channel design does not aim to compete with dual-socket server bandwidth, but it is a meaningful upgrade over mainstream desktop platforms when you’re feeding multi-threaded render engines, heavy geometry workloads, or running several virtual machines in parallel.

On the I/O side, 48 PCIe 3.0 lanes are a practical advantage for workstation builders. You can combine a high-end GPU (or two, depending on lane planning), NVMe storage, and specialized cards (capture, high-speed networking, RAID/HBA) without forcing everything through a chipset bottleneck. For many studios and engineering teams, that flexibility is the difference between a clean, expandable workstation and a platform that requires compromises.

From a feature perspective, Xeon W models like the W-2275 are typically chosen for platform stability, professional validation, and workstation-grade manageability features rather than only peak benchmark scores. Support for modern vector instruction sets and Intel Deep Learning Boost (VNNI) can also be relevant when you run inference-oriented workloads locally (for example, vision pipelines, classical ML feature extraction, or lightweight neural inference) as part of a production toolchain.

The W-2275 is a strong fit when you need a single-socket workstation that prioritizes predictable performance under sustained load, flexible PCIe connectivity, and memory headroom for professional datasets, while still delivering high turbo clocks for interactive tasks.
